160kv High Resolution Digital X Ray Checker for Metal Parts Inner Quality Probe

160kv High Resolution Digital X Ray Checker for Metal Parts Inner Quality Probe

US$29,000.00-58,900.00 1 Set (MOQ)

Basic Info.

Model NO.
FSX-T160-P4343D3
Portable
Non Portable
Form
Cabinet
Application
Industrial
Type
Industrial High-definition X-ray Detector
Certification
ISO
Customized
Customized
Alarm Form
Audible Alarm
X-ray Source Type
Integrated Ray Source
Industrial
Auto Parts, Castings,Foundry,Battery Enclosure Ect
Detected Object Thickness
Fe:10-15mm, Alu:60-80mm
Whole Machine Weight
2.5 Tons
Movement of Detection
3-Aixs (Y,Z,T)
Imaging Method
Digital Static Imaging
Transport Package
Wooden Carton
Specification
H2.1m *W 1.8m * D1.2m
Trademark
MCXY
Origin
China
HS Code
9022199090
Production Capacity
6000 Sets/Years

Product Description

Product DescriptionSuper Cost-effective X-ray NDT machines,Industrial X-ray Inspection System for Castings, Auto Parts ect.
Our Digital X-ray NDT machines provide the highest quality weld and foundry inspections with excellent price & performance. We can supply high quality radiographic equipment with simple operation and image enhancement clarity for ease of judgment. OEM & ODM are Supported...
Digital X-ray System for Foundry & Castings Quality Control
Model:FSX-T160-P4343D3(Standard model)
Main Feature:
Brand:MCXY
Place of Origin:China
Max size of detected workpiece:Φ600mm* 800mm (H)
Max weight of detected workpiece:50kgs
Thickness of detected workpiece:Fe:10-15mm; Alu:60-80mm
X-ray Source Type:Integrated ray source
Tube style 160kv/0.5mm focus closure tube
Tube Voltage 160kv/1.25mA
Flat panel detected accuracy140μm
Detection speed1 frame / sec
Pixel matrix3072 * 3072
If you need customized the machine for your project kindly contact with us, we can offer the free service for sample quality inspecting.
FSX-T160-P4343D3 X-ray system can be widely used in the field of non-destructive testing, such as detecting bubbles, cracks, impurities, and looseness in metal and non-metal castings, detecting defects in metal welding and mixed metal and non-metal components, and are extensively applied in the multi-angle testing of product samples and batch production. Metals include aluminum alloy die-casting, stainless steel, iron, etc., while non-metals include plastics, rubber, etc.
Additionally, they can be used for detecting bubbles in the adhesive in the light industry field.

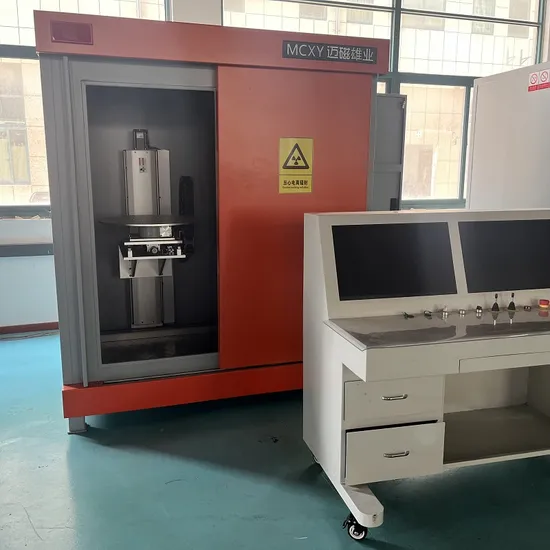

Details of the X-ray Inspection Device
Inspection Imaging
Highlight of the system:
1)The equipment utilizes the industry's largest flat panel X-ray imager, providing a wide imaging range, high precision, and fast speed.
2)Integrated high-frequency X-ray generator with a fully enclosed design, featuring intelligent management for safety, durability, and reduced equipment wear and failure.
3)Dual safety measures with a closed protective cabinet, ensuring that X-ray radiation outside the cabinet approaches natural background radiation levels.
4)Separate design for the operating console with multiple mode operation interfaces, making operation simple, user-friendly, and effectively improving work efficiency.
5)The unique USM effect in the software makes defects in the inspected products easier to detect.
6)The software incorporates the ASTM E505-15 standard chart for aluminum and magnesium castings, facilitating easy comparison during image acquisition.

Radiation Protection
The surface radiation of the entire machine is far below the standard, approaching natural background radiation, measuring <0.5μSv/h.CertificationsWe have CE,ISO,FDA, Radiation Safety Permit, Computer Software Copyright Registration Certificate, Hardware Design Patent, Health Test Reports etc..
Company Profile
About Us
Micxy is a high-tech enterprise specializing in the production of x-ray non-destructive testing equipment for Mental die castings & Nonmetal products.
As a high-tech enterprise, we have been committed to computer software development and technical services, as well as mechanical equipment and automation equipment R&D. With a professional technical team, we have launched a series of products with independent intellectual property rights through continuous technological innovation and research and development. Supported by strong software strength and unique algorithms, our company eliminates image noise, enhances defect features, and makes the image smoother and clearer.
Micxy has been plowing into the research and development of non-destructive testing equipment for die-casting industry, and strive to become the most famous brand of die-casting industry x-ray machine. Convincing Industrial X-ray Flaw Detector Manufacturer
Micxy as a high-tech enterprise which specialises in the production of x-ray non-destructive testing equipment for aluminum, iron, zinc, magnesium and other die castings. The production of "MCXY" brand X-ray flaw detector with clear image and stable quality, favored by customers. At the same time, it is also the "Anhui Province casting testing center designated inspection equipment".
Your Partner in X-ray NDT For Casting With Core Technology
At the service of innovation for 20 years, Mixcy focuses on the Non-destructive Testing Technologies and gives our customers the best inspection solution with the high quality radiogaphic equipment with simple operation and complete functions.
Micxy focuses on providing high-quality X-ray non-destructive testing equipment for the casting industry, used to detect internal defects in components. In order to meet the needs of different customers, the company has developed a variety of X-ray non-destructive testing products. Eleven independently developed imaging software have been successively applied to the equipment, with positive feedback from customers. These imaging software have features such as fast imaging speed and clear images, and have obtained computer software copyright registration certificates approved by the National Copyright Administration. In addition, nine of the company's main products have been granted national patents, and a five-axis integrated circuit used in one of the devices has obtained a national design registration certificate (equivalent to an invention patent). R&D capabilities,OEM & ODM are Supported
Micxy X-ray equipment is simple to operate, our company has developed patented image enhancement technology, which makes the images clearer and defects more evident. Operators can easily determine whether the products are qualified. This significantly enhances efficiency in the detection work.After Sales ServiceAfter-sales service is one of our key concern. Micxy is willing to provide the high-quality service to clients,and aiming to meet and surpass the clients' expectations.
Quality assurance and after-sales service
A: Installation service: Micxy could provide installation service after our equipment reached the site at clients' need. Our charges will be reasonable and assuring our Micxy systems working properly after installation and do commissioning of our systems, provided there are no system damages caused during improper transportation handling or man-made harm.
B: Training service: Micxy could provide training service to both our partners and end users at clients' need. Our charges will be reasonable and could provide test as well as training certificate when you need.
C: Debugging and Maintenance service: Micxy could provide maintenance service to our clients. Our charges will be reasonable and could assure to issue a maintenance report to the user after maintenance work.
We also have several methods of after-sales service available for end user's choice according to the client's preference:
A. Site visit after-sales service: Our engineer could fly to the site and do the after-sales as well as maintenance service with reasonable cost.
B. On-line technical analysis and support: We could do on-line technical analysis to the end users' requirements and guide the technician at site to do the repair or maintenance accordingly.
C. Telephone technical guidance: We provide technical guidance service to our clients through telephone. 24 hours service telephone is available.
FAQ1.How long is the lead time?
The standard equipment manufacturing time is 30 days.
For customized non-standard equipment design and manufacture will take 2 months.
Delivery time depends on models and quantity.
2.Does your company could provide customzied services?
Yes, we can provied the customzied services. We have the professional technology team and basic on customer requirements to design csutomzied the products.
We can provide OEM, ODM and SKD services.
3. What's your min order quantity?
We are available for one peices for sample machine.
4. How long is your warranty?
Free warranty 1 year for spare parts, lifetime for the software.
5.How about your supply capacity?
We have our own big factory as our total security solutions manufacturing base. Could be able to handling various projects at clients' need.
6.Do you have any big projects that you have done?
By now, Micxy have made great success in many different fields, hereby pls. find a small part of them:
Castings&Foundry, Auto parts,Railway/Train Parts,Electricity engineering,
Government Offices: Anhui Casting Testing Center
7. What is your payment terms?
Normally T/T 30% in advance, 70% before shipment.
For some big projects, also L/C, D/P or D/A.
8. How many ways of transportation and what is your products's package?
We have Ocean freight, Air freight, Land transportation.
For package, we usually use the composite wood pallet, vacuum bag and so on.
We have professional logistics team and can provide best service and price.
