Vmc1160 CNC Vertical Milling Machining Center Tool Changer for Metal
Basic Info.
Model NO.
VMC1160
Type
CNC Milling Machine
Object
Metal
Structure
Bed type
Milling Cutter Type
All Kinds
Milling Cutter Structure
All Kinds
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Guideway
Taiwan Linear Guideway
Worktable Size
1200X600mm
X/Y/Z Axis Travel
1100/600/600mm
Spindle
Bt40
OEM
Available
Delivery Time
2 Months
Color
Customized
Voltage
Customized
Spindle Motor
11kw
Atc
24 Tools Atc
Spindle Speed
8000rpm
Guideway Type
Roller Guideway
Spindle Drive
Belt Drive CNC Milling Machine
Transport Package
Wooden Case
Specification
VMC1160
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
270.00cm * 240.00cm * 270.00cm
Package Gross Weight
6700.000kg
Product Description

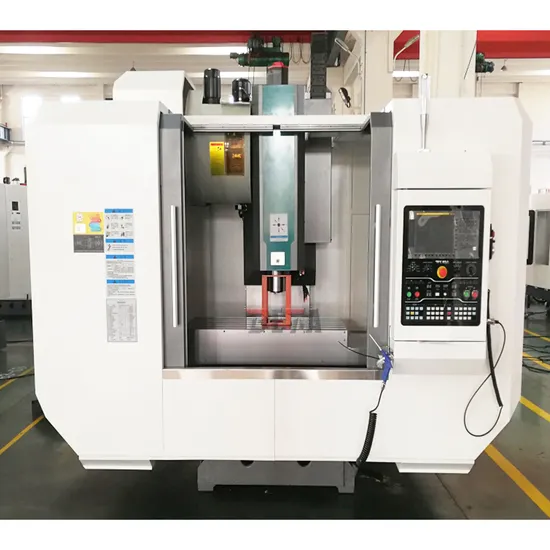

VMC1160 CNC vertical milling machining center tool changer for metal
Standard configuration:
GSK CNC controller system
16 pcs or 24 pcs tools automatic tool changer
X/Y/Z-axis linear guide way and ball screws from Taiwan
BT40/BT50 spindle with 8000rpm/6000rpm speed
Full protection cover
work light & alarm light
automatic centralized lubrication system,
Water cooling & air cooling
MPG
Tools & tool box
Optional accessories:
Siemens/Fanuc CNC controller
The 4th axis rotary table
| Model | Unit | VMC1160 |
| Worktable size | mm | 1200x600 |
| Max.loading capacity of worktable | kg | 1000 |
| X/Y/Z-axis travel | mm | 1100/600/600 |
| Distance between spindle nose to worktable | mm | 150-750 |
| Distance between spindle centre to column guide | mm | 650 |
| X/Y/Z-axis rapid moving speed | m/min | 24/24/20 |
| X/Y/Z-axis cutting feeding speed | mm/min | 1-5000 |
| Spindle taper | - | BT40 |
| Max.spindle speed | rpm | 8000 |
| Spindle motor power | kw | 11 |
| Position accuracy | mm | 0.008 |
| Re-position accuracy | mm | 0.005 |
| Automatic Tool magazine pieces | pcs | 24 pcs ATC |
| Overall size | mm | 2700*2400*2700 |
| Machine weight | kg | 6700 |
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
