Industrial Heavy Duty Large Diameter Plastic Corrugated Pipe Recycling Machinery Crushing Shredder

Product Description

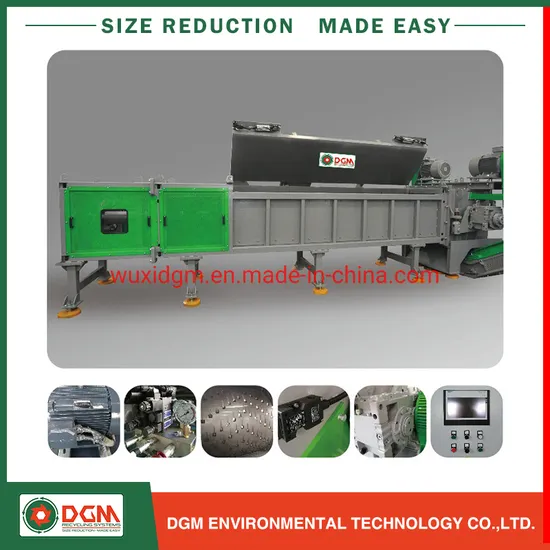

DGR Large Diameter Plastic Corrugated HDPE Pipe Recycling Machine Shredder
Descriptions The DGR Large Diameter Pipe Shredder is specially designed for handling large diameter pipes (up to 1200mm diameter) without any need for pre cutting. The DGR rotor diameters range from 800mm to 1500mm and the standard hopper can accept lengths up to 6m. The concave ground, aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. The DGR shredder range can also be used to shred bundles of small diameter pipes and profiles, lumps, stacked wheelie bins, buckets & pallets, etc.
The hydraulically operated ram feeds the material horizontally in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.
Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance.
Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.
A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
Specifications

ITEM		UNIT	DGR800	DGR1000	DGR1500
Cutting Chamber		mm	3870*700	6700*700	6700*1300
Rotor Diameter		mm	800	980	1430
Rotor Speed		rpm	40	36	23
Main Motor Power		kw	2*37	2*45	2*55
Rotor Knives		pcs	60	108	204
Stator Knives		row	3	4	5
Hydraulic Ram Power		kw	11	15	15
Machine Weight		kg	11000	20000	25000
Effective Working Area		mm	3500*630	6000*800	6000*1000
Dimensions	A	mm	7700	11900	12200
	B	mm	1420	1540	1800
	C	mm	5060	8100	8100
	D	mm	3860	6700	6700
	E	mm	1730	1840	2320
	F	mm	2550	2970	3360
	G	mm	2570	2660	3150
	H	mm	975	1070	1070
	I	mm	590	590	590

Layout
Features Large diameter flat rotor Specially designed feeding trough Machined pocket knife holders Optional hard facing Concave ground square knives Robust ram construction Universal couplings Low speed, high torque geared drive Powerful horizontal hydraulic ram Bolt in driveshafts Multiple rotor designs Two-speed hydraulic system Oil cooling on ram and gearbox Amp meter control
Options Wedge for thin-walled products Gearbox with shrink disc Rotor cooling Touch screen PLC Increased motor drive Hydraulic drive Bespoke colour scheme Turbo hydraulics Housing wear plates Metal detector Horizontal discharge with over band magnet
Applications PLASTICS RUBBER WOOD BIOMASS PAPER ALTERNATIVE FUELS (RDF/SRF) DOMESTIC & COMMERCIAL WASTE
Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved for CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.
2. Plastic packing strap belts are used to fasten wrapping film and machines and also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.
4. Excellent logistic team to guarantee the shredder and granulators machines to be safely shipped to customers appointed location.
5. If you have any other requests for the packaging or loading, we will try our best to meet your demands.
