Proficient Waste Tire Rubber Recycling Machine with Crusher

Product Description

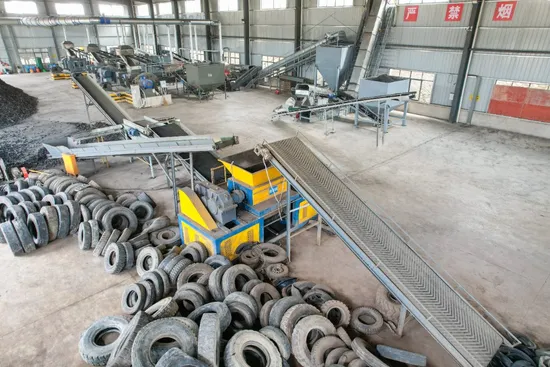

Product DescriptionThe waste tire recycling production line contains equipment specially used for shredding, crushing, separating and other processing of waste tires. These machines enable efficient and environmentally friendly treatment of waste tires, transforming them into useful resources and energy.
1.Tire shredder
Tire shredder is the equipment used for shredding waste tires. It's the first part of the production line with environmentally friendly, energy saving and high efficient characteristics. The most common purpose of it is cutting and shredding the waste tires to facilitate subsequent treatment and processing.
2.Tire crusher
Tire crusher is the equipment used for crushing waste tires. It's the second part of the production line with low energy exhausted and better economics characteristics. The most common purpose of it is crushing the waste tires into small particles or powder to facilitate subsequent treatment and processing.
3.Tire grinder
Tire grinder is the equipment used for grinding waste tires. It's the third part of the production line with convenient operation and high working efficiency characteristics. The most common purpose of it is magnetic separating and screening steel wires and fibers of the waste tires and finally for the classification. After performing a series of operations, the waste tires can be converted into useful resources, such as paving materials, recycled rubber, etc.
Rubber shredder parameter

Name		610 type	710 type	810 type
No	Component	Technical	Technical	Technical
1	Helical roller	610mm *1000mm	710mm*1000mm	810mm*1200mm
2	Straight tooth roller	510mm*1000mm	610mm*1000mm	710mm*1200mm
3	20 mesh Rubber powder	1000-1200kg	1200-1500kg	1500-2000kg
4	Dimension	5400mm*2000mm*1400mm	6200mm*2260mm*1700mm	6400mm*2700mm*2400mm
5	Motor power	Y2-325M2-6 -200-220kw	Y2-355m2-6 -250kw-280kw	Y2-400m2-8 -315kw
Auxiliary machine
No	Component	Total power	Total power	Total power
1	main vibrating screen	29kw	31kw	48kw
2	secondary vibrating screen
3	9000 magnetic separator
4	rubber powder feeding belt
5	anti-tying belt machine
6	12000 magnetic separator
7	rubber powder collector

Production process diagram
The waste tire recycling production line can be designed according to customer requirements, recycling tires within the diameter range of 400-3000mm, with strong applicability. The discharge size can be controlled within the range of 5-100mm, and the output can reach 200-10000kg/h.
The production line adopts a PLC control system, which is easy to operate and maintain, and has the characteristics of low energy consumption and long service life.
Double Shaft Shredder - Double DriveShredder Parameter:

Steel Wire Removal Process
1	Tire Steel Wire Drawing Machine	Remove the tire bead wire
Rubber Block Process
2	Shredder with rolling screen	Shredding the tire into ≤50mm rubber pieces
Wire separation
3	Rubber Grinder	Peel the capillary wire in the tire and obtain 1-5mm rubber particles
Rubber Granulating Process
4	Rubber Granulating Machine	Grind the rubber to 15-200 mesh as required
Dust Removal Process
5	Magnetic Separator	Remove wire from rubber particles
6	Fiber separator	Separation of fibers from tire particles
7	Dust removal equipment	Dust removal

Product Parameters

Double-shaft shredder	Crush waste tires of various sizes, using high alloy steel imported from Europe as cutting tools, with a detachable and interchangeable double row knife structure design to improve tool utilization rate
Steel wire separator	Cut the rubber block through moving knife and fixed knife,Qualified rubber particles and steel wires are discharged through the sieve
Conveyor	The material surface of the rack has undergone rust removal treatment
Magnetic separator	The type of magnetic separator is permanent magnet self dumping type, which can effectively screen the separated steel wire.
Vibrating screen	Separate the steel wire from the large rubber block/steel wire through vibration
Electronic control system	The main control cabinet and control platform are independent of each other, and the design of touch screen and button control mode enables operation,The control interface is more user-friendly and easy to operate
