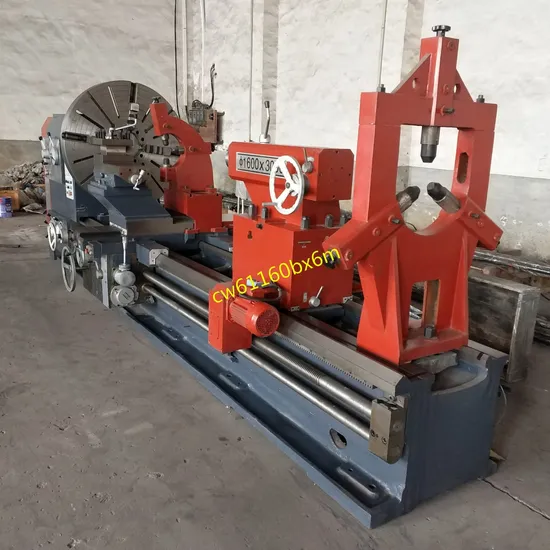

Cw61160bx6m Manual Lathe Engine Big Lathe

Product Description

CW611160Bx6000MMx6T Horizontal Lathe Machine
Product Description
Conventional Horizontal Lathe: A Cornerstone of Machining Precision

The conventional horizontal lathe is an essential tool in the field of mechanical engineering and metalworking. It has a long and storied history, evolving over the years to meet the ever-increasing demands of precision manufacturing.

1. Basic Structure and Components

A typical conventional horizontal lathe consists of a bed, which provides a stable and rigid foundation for the entire machine. The headstock is located at one end of the bed and houses the spindle. The spindle is a crucial element as it rotates the workpiece at a desired speed. It is powered by an electric motor and is capable of achieving a wide range of rotational velocities, allowing for the machining of different materials and workpieces of various diameters.

The tailstock is situated at the opposite end of the bed from the headstock. It supports the other end of the workpiece, especially for long and slender workpieces, ensuring stability during the machining process. The carriage is another important component that moves along the bed. It holds the cutting tool and can be precisely positioned both longitudinally (parallel to the axis of the workpiece) and transversely (perpendicular to the axis of the workpiece). The apron, attached to the carriage, controls the movement of the carriage and provides the necessary power transmission for its operations.

2. Machining Operations

This type of lathe is capable of performing a variety of machining operations. Turning is the fundamental operation where the cutting tool removes material from the outer surface of the workpiece as it rotates, creating a cylindrical shape. Facing is used to create a flat surface perpendicular to the axis of the workpiece. Grooving involves cutting grooves of different widths and depths on the workpiece. Threading is also a significant capability, allowing the creation of screw threads on the workpiece, which is crucial for many mechanical assemblies where threaded connections are required.

3. Advantages and Limitations

One of the main advantages of the conventional horizontal lathe is its simplicity and reliability. It has a relatively straightforward design, which makes it easier to operate and maintain compared to some more complex machining centers. It is also well-suited for small to medium-sized production runs and for machining a wide range of workpiece materials, from metals like steel and aluminum to some plastics.

However, it does have its limitations. The manual operation and setup can be time-consuming, especially for complex workpieces that require frequent tool changes and precise positioning. The accuracy and surface finish it can achieve may not be as high as that of some advanced CNC lathes. Additionally, the productivity is relatively lower as it depends heavily on the operator's skill and experience.

4. Importance in Modern Manufacturing

Despite the advent of more advanced CNC machining technologies, the conventional horizontal lathe still holds a significant place in modern manufacturing. It is often used in job shops and small manufacturing enterprises where the cost of CNC equipment may be prohibitive or where the nature of the work does not require the high automation and complexity of CNC machining. It also serves as a training tool for machinists to learn the basic principles and techniques of lathe machining before advancing to more sophisticated CNC operations.

In conclusion, the conventional horizontal lathe is a vital piece of machinery in the manufacturing industry. Its simple yet effective design and wide range of machining capabilities have made it a staple in workshops around the world, contributing to the production of countless precision components and parts that are essential for various mechanical and industrial applications.
Product Parameters

Items	Unit	CW61160B
Max.Swing diameter over bed	mm	1600
Max.Swing over carriage	mm	1200
Maximum distance between center		6000mm
Max cutting length		5800mm
Max.weight of work piece	ton	6
Guide way width	mm	755
Spindle bore	mm	130
Taper hole of spindle		Metric 140
Spindle speed number and range	Kinds;r/min	21 kinds;3.15-315(Foreward) 12kinds;3.5-278(Reversal)
Number of feeds per revolution (longitudinal/transverse)	kinds;mm/min	56kinds;0.1-12/56kinds;0.05-6
Number and range of metric thread	kinds;mm/min	44kinds;1-120
Number and range of inch thread	kinds;mm/min	31kinds;24-1/4T.P.I
Number and rane of modle thread	kinds;mm/min	45kinds;0.5-60
Number and range of diametrical pitch thread	kinds;mm/min	38kinds;1/2-56Dp
lower slide	Mm	630
top slide	mm	300
Tool rest fast moving speed Longitudinal	mm/min	3740
Tool rest fast moving speed Horizontal	mm/min	1870
Small knife rest	mm/min	935
Diameter of Tailstock quill	mm	160
Travel of tailstock quill	mm	300
Taper hole of tailstock quill	MT	80 Metric80
Main motor power	kw	18.5,6(Class)
Knife rest rapid move speed	kw	1.5
Coolant system motor power	kw	0.12
(XX) Machine size(LxWxH)	mm	(8000+3100)x2150x1825
Lathe gross weight		20000kg
