Closed Type Solar Module Frame Section Roll Forming Machine

Product Description

Solar Module Frame Roll Forming Machine
Product Description
1. Raw material

Item	Specification
Raw material	Zinc aluminium magnesium coating
Width of the raw material	According to the final profile
Thickness	0.6mm
Coil I.D	Φ380-520mm
Coil O.D	Φ1200mm
Coil weight	Max 3Tons

2. Machine performance

Item	Specification
Strip width for future profiles min	250mm
Product thickness	0.6mm
Product length	According to the customer request
Length tolerance	±1.5mm
Forming speed	30-50m/min

3. Profile
4. Production process: (only for reference, final layout will be provide in 25 days after conform order)
Feeding-Roll Forming-Rectify-Track Fly Saw Cutting-Out table Product Parameters
5. Specification of Components

1)Forming machine
Feeding device	Length 0.5m sheet positioning guide table (1 piece)
Forming stands	About 40stations+1station of rectify
Machine frame	400H beam welding,surface milling
Machine structure	Wire electrode cutting
Shaft diameter	Φ65mm; 40CR, quenching and tempering
Roller	Material: Cr12,heating hardness treatment HRC55-58
Forming speed	30-50m/min
Power	11kw x2 motor MITSUBISHI
Drive	MotorReducerGear boxTransmission shaftRoller

2) Track cutting
Function	Cut profile into specified length.
Structure	Cutting method: burr-free flying saw cutting Lying sheer ,ball screw min diameter - 50 mm Adopt track fly saw cutting Servo power for track :1KW MITSUBISHI Cutting power:3KW MITSUBISHI Cutting after forming: Cut the sheet after roll forming to required length Material of blade: high speed steel with heat treatment 58-62° Length measuring: Automatic encoder length measuring, Omron Single encoder to use at forming mill for both length rolling & for cutting. Tolerance of length: +/- 1.5mm

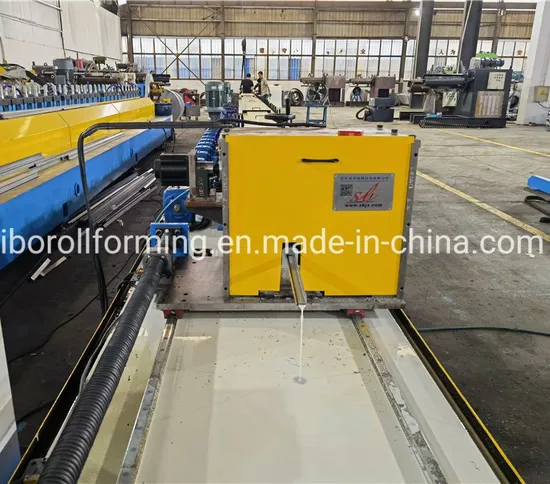

Detailed Photos
