1MW-4MW High Voltage 10.5kv Gas Generator Set with High Efficiency and Low Emission

Product Description

Product Description

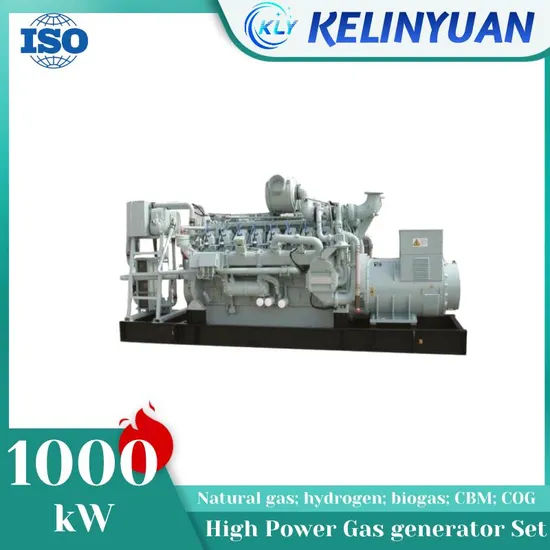

Shengyuan 1MW-5MW gas generator set
NOX ≤ 500mg/Nm³ Exhaust gas temperature ≤ 450 ºC
Specializing in the development of GAS GENERATOR SET and Purification Systems of tail gas for over 30 years, Kelinyuan will customize plans that meet the need for energy saving and emission reduction for domestic and foreign customers.
Shengyuan gas generator set is designed and manufactured to be high quality and stability with a power range from 300kW to 5000kW. Being low-speed machines, Shengyuan Gensets have the traits of long service life and low maintenance cost for the overhaul period is longer than 60 thousand hours and it only takes about 10 to 15 days to maintenance. Adapting the technology of injecting pressurized gas with air directly into engine cylinders, our products have low fuel consumption, low gas quality requirement, and low fluctuation. Lean burn technologies can achieve very low NOX emissions. The start-up time of gas engines is about 10 minutes. The combination of machines is flexible and easy to operate, with tough environmental adaptability.
Product Parameters

Engine model	Parameters	20V280G						Unit
Engine	Applicable gas	Natural gas; hydrogen; CBM; biogas; COG
	Rated power	1000	1200	1500	2000	3000	4000	kW
	Rated rotation speed	1000						rpm
	Generating efficiency	About 42%
	Gas consumption	8570±5%						kJ/kW·h
	Engine oil consumption	≤0.6						g/kW·h
	Exhaust gas temperature	≤450						ºC
	NOx emission	≤250						mg/m³
	Piston displacement	53.7	71.6		214	286		L
	Cylinder diameter*stroke	200*285		280*290				mm
Genset	Frequency	50						Hz
	Voltage	10500						V
	Power factor	0.8 lagging
	Weight	19300	19800	27000	49000	54000	58000	kg
	Dimension	5500×1700×2500		6700×1800×2800	6900×2400×3400	8500×2400×3400	8500×2400×3400	mm
	Start method	Compressed air start
	Type	Inline, water cooled, four stroke, spark plug ignition

The data is for reference only and is not intended to be a binding value. Please refer to the information in the technical agreement.

Our Advantages

Injecting pressurized gas with air directly into the engine cylinder. Lean burn technologies can achieve very low NO emissions. R&D unit of national first-generation high-power gas genset. One of the drafting units for national standards on gas power generation One of the high-tech cooperation units on the National High-tech R&D Program (863 Program) Integration supplier for clean energy use projects. The only manufacturer in China that has the ability to produce gas gensets with a power range from 2000kW to 5000kW. It has more than 20 advanced patents and 16 of them are invention patents. About us

FAQ
Q1: Are you a trading company or a manufacturer?
A: We are a trading company as well as a manufacturer.
Q2: What kinds of gas generator sets do you produce?
A: It covers all kinds of gas produced in agriculture and industry, including natural gas, hydrogen, biogas, CBM, COG, semi-coke gas, as well as related gas purification equipment.
Q3: What's your warranty?
A: For all our products we offer one year warranty.
Q4: What is your delivery time?
A: Normally within 40 days, it depends on the configuration and quantity, please confirm with us before ordering.
Q5: What is your available port of shipment?
A: Normally Shanghai port, other ports are available according to customers' requirements.
