Hot Sale Light Cylinder Honing Machine for Engine Rebuilding From China
| US$4,400.00-5,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
3MB9817
Type
Honing Machine
Processing Object
Cylinder
Abrasives
Whetstone
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Cylinder Honing Machine
Precision
High Precision
Certification
ISO 9001
Condition
New
Honing Diameter
25-170mm
Max. Honing Depth
320mm
Spindle Power
1.5kw
Spindle Speed
120,160,225,290rpm
Coolant Pump Motor Power
0.125kw
Stroke Speed (3 Step)
35,44,65times/Min
Travel of Workbench
0-180mm
Overall Dimensions
1650*1670*1920mm
Transport Package
Ship/Train
Specification
1100kg
Trademark
SNALPO
Origin
China
HS Code
8460401000
Production Capacity
100pieces/Year
Product Description

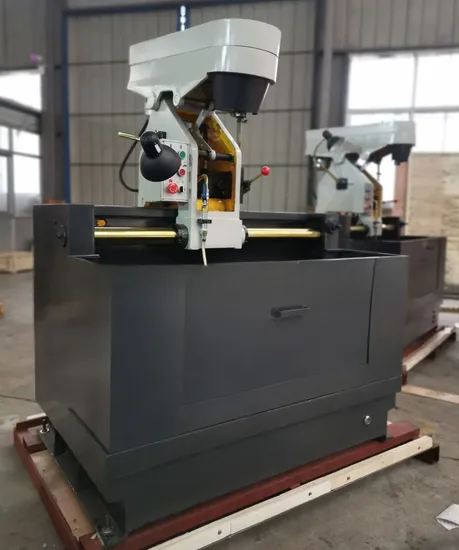

Product DescriptionVertical Cylinder Honing Machine
Machine Features
The machine tool is mainly used for honing automobile and tractor cylinders with diameters from 25 to 170 arter boring process.
The machine tool is small in size, light in weight. The machine tool proper can be slid longitudinal at will to facilitate operation. The up-and-down reciprocating by hydraulic.
Motion of which can be adjusted randomly. Honing process can be carried out arter the cylinder block to be honed is placed on the worktable, abjusted to centre position and secured.
Application Scenarios
Product Parameters
Vertical engine cylinder honing machine
main technical parameters
| Items | 3MB9817 | Unit |
| Honing diameter | 25-170 | mm |
| Max. honing depth | 320 | mm |
| Spindle power | 1.5 | kw |
| Spindle speed (4 step) | 120,160,225,290 | rpm |
| Coolant pump motor power | 0.125 | kw |
| Stroke speed (3 step) | 35,44,65 | times/min |
| Angle of the fixture | 0,30, 45 | degree |
| Travel of workbench | 0-180 | mm |
| Machine working inside cavity dimensions | L:1400*W:870 | mm |
| Overall dimensions | 1650*1670*1920 | mm |
| Packing dimensions | 1890*1800*2100 | mm |
| G.W | 1100 | kg |
| N.W | 900 | kg |
Detailed Photos
Work Piece
Packaging & Shipping
Company Profile
