Iot-Based Electricity Power Meter with Multi-Channel for Energy Monitoring System

Product Description

IoT-Based Electricity Power Meter with Multi-Channel for Energy Monitoring System

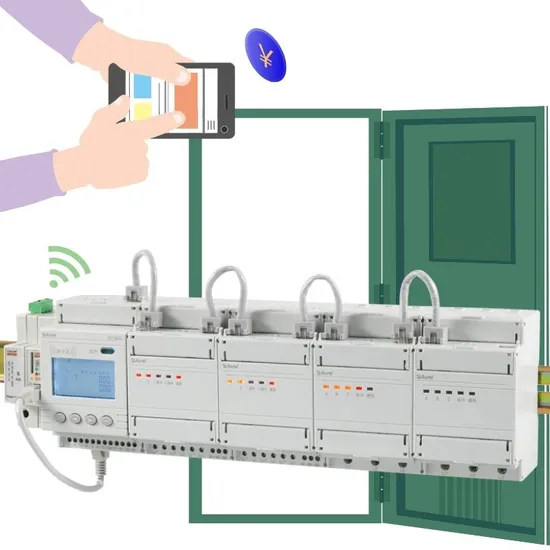

ADF400L series multi-channel energy meter, through the way of combination module, can realize largest 36 circuits single-phase or 12 circuits three-phase, Direct connect or via Current Transformer.
ADF400L series Power meters with high accuracy 0.5s class, high concentration, centralized management, installation flexibility, and the advantages of each other non-interference by the community, schools, and enterprises of all areas. The series of meters support prepaid power functions.

Module

Payment Method
just feel free to contact me to create an EMS IoT Cloud Platform experienced account for you
Dimension
Wiring

Installation

Product Parameters

Parameter	Description&Value
Auxiliary Power Supply	Voltage	3*220V/380V (for 3-phase sub modules)
	Power Consumption	≤10W
Input Voltage	Rated Voltage	3x 220/380V AC (3-phase)
	Frequency	50Hz
Input Current	Rated Current	Max 80A Load Current (for 1-phase&3-phase sub module with direct connection); 3×1(6)A(for 3-phase sub module via CTs)
	Starting Current	1‰ Ib (Class 0.5S)
Accuracy	Measurement	Class 0.5
	Clock	≤0.5s/d
Pulse	Pulse Output	1 Active Energy Pulse for each 3-phase Sub Module
	Pulse Width	80ms±20ms
	Pulse Constant	6400imp/kWh (3-phase)
Communication	RS485	MODBUS-RTU
	Infrared	For Prepaid Card Scanning
	Ethernet	MODBUS-TCP
Environment	Operating Temperature	-20ºC~+60ºC
	Storage Temperature	-30ºC~+70ºC
	Humidity	≤95% (No condensation)
	Altitude	<2000m

Networking
