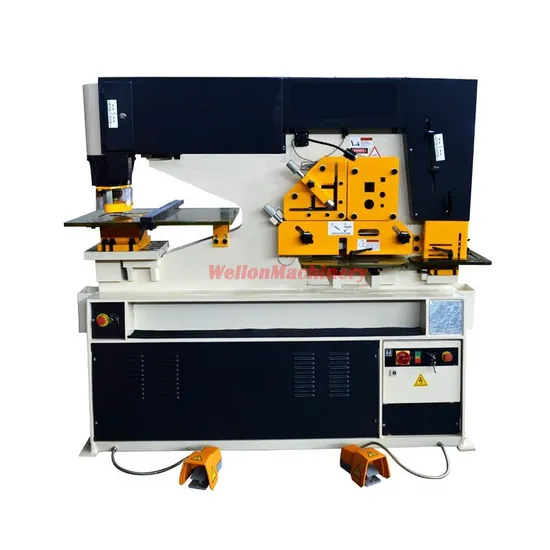

High Quality Hydraulic Ironworker Shearing Punching Machine Combined Iron Worker Q35Y-16/Q35Y-20/Q35Y-25/Q35Y-30/Q35Y-40

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
1. Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2. The crankshaft undergoes grinding treatment after high frequency quenching, beautiful outlook;
3. Hexahedral guide rails of extra length in square shape marked with high precision;
4. Combined type pneumatic friction clutch-brake, ensuring steady engagement and low in noise level;
5. Hydraulic overload protection for JH21, rigid protective device for JF21 to prevent damage due to overload in
operation;
6. PLC electric control system is safe and reliable;
7. Pneumatic balance device for slide block to ensure the stability and precision of the machine tool;
8. Automatic thick oil lubrication for specific points and in specific volumes regularly to ensure sufficient, uniform
and reliable lubrication, electrical die adjustment with digital display for 60Ton and 60Ton plus;
9. Optional device: automatic feeding device, electric protective device, photoelectric protection device and air
cushion device, etc.
Technical parameter:

Model			Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40	Q35Y-50
Processing Capacity (KN)			600	900	1200	1600	2000	2500
Material Tensile Strength (Mpa)			≤450	≤450	≤450	≤450	≤450	≤450
Flat Shearing	Max. Shearing Capacity		16x250	20x330	25x330	30x355	35x400	40x450
	(thickness* width (mm)		8x400	10x480	16x600	20x600	25x700	30x750
Bar Shearing	Square Bar(mm)		40	45	50	55	60	65
	Round Bar (mm)		45	50	60	65	70	80
	C-channel (mm)		126	160	200	280	300	320
	I-beam (mm)		126	160	200	280	300	320
Angle shearing	90° shearing (mm)		120x12	140x12	160x14	180x16	200x18	200x20
	45° shearing (mm)		70x8	70x10	80x7	80x10	80x10	80x10
Hole Punching	Max. Punching Capacity (diameter* thickness) (mm)		25*16	30*20	35*25	38*26	40*35	40*40
Motor (KW)			4	5.5	7.5	11	15	18.5
Dimension(mm)		Length	1650	1950	2350	2680	2800	3200
		Width	800	900	980	1060	1260	1440
		Height	1780	1930	2100	2380	2420	2450
Weight			1800	2600	4400	6600	7500	10800

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
