High Quality/Prime Seamless Casing /Tubing (API 5CT J55/N80-1/N80Q)

Product Description

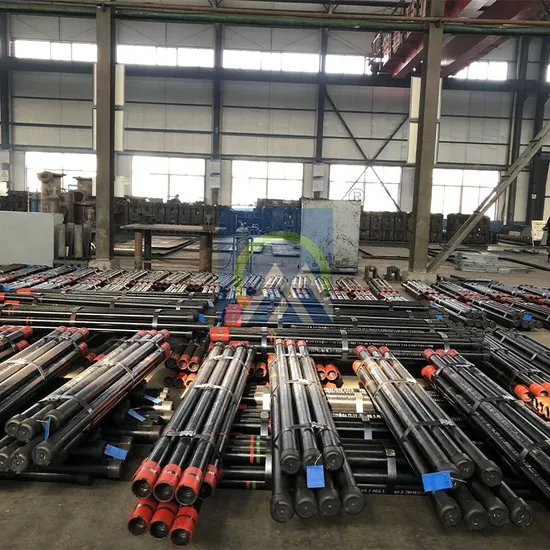

TUBING AND CASING Our factory specializes in the manufacturing of high-quality Casing and Tubing:Each product is crafted in accordance with API SPEC 5CT standards, ensuring top-tier quality.We offer a diverse selection of steel grades to meet your needs: J55, K55, L80, N80, C95, P110.Our Tubing comes in an O.D. Range from 2-3/8" to 4-1/2" (EUE/NU), providing versatility for various applications.Our Casing is available in sizes ranging from 4-1/2" to 20", accommodating a wide spectrum of demands.We offer Threads in BTC, LTC, and STC types to suit different installation requirements.Our products have Length ranges of R1, R2, and R3, ensuring adaptability to diverse project needs.If you are interested in our high-performance products, please feel free to reach out to me anytime.We also offer premium connection casing & tubing pipes, fully interchangeable with NEW VAM and VAM TOP.

TUBING PIPES
STANDARD: API SPEC 5CT
Outside Diameter Specified(mm)	Nominal Weight Threads & Coupling	Steel Grade	Wall Thickness (mm)	Type of Thread
	Ib/ft			N U	E U
60.32(2 3/8")	4.70	H,J,L,P	4.83	YES	YES
	5.80	C,N,L,P	6.45	YES	YES
	5.95	L,P	6.45	YES	YES
	7.35	C,L	8.53		YES
	7.45	L,P	8.53		YES
73.02(2 7/8")	6.40	H,C,N,L,P	5.51	YES
	6.50	H,C,N,L,P	5.51		YES
	7.80	C,N,L,P	7.01	YES
	7.90	C,N,L,P	7.01		YES
	8.60	C,N,L,P	7.82	YES
	8.70	C,N,L,P	7.82		YES
	9.45	L,C	8.64		YES
88.90(3 1/2")	9.20	H,J,C,N,L,P	6.45	YES
	9.30	H,J,C,N,L,P	6.45		YES
	10.20	H,J,C,N,L	7.34	YES
	12.70	C,N,L,P	9.52	YES	YES
	12.95	L,P	9.52		YES
101.60(4")	9.50	H,J,C,N,L	5.74	YES
	11.00	H,J,C,N,L	6.65		YES
114.30(4 1/2")	12.60	H,J,L,N,C,T	12.75	YES
	12.75	H,J,L,N,C,T	12.75		YES

PREMIUM CONNECTION/ RTN-14AM STRUCTURE • Featuring a coupling connection type, our design achieves connection strength equal to or exceeding the pipe body. • The thread is an improved buttress type, enhancing connection efficiency and easing processing. 2 3/8"-2 7/8" 8 TPI, 3 1/2"-4 1/2" 6 TPI, 5" and over 5 TPI • The main seal employs a taper to taper seal structure with a negative angle torque shoulder for superior sealing ability. • The reverse torque shoulder enhances the connection's capability to bear combined loads. • Aligning the inner walls of the pipe body and coupling ensures seamless performance. PERFORMANCE • Our standard coupling connection achieves strength on par with the pipe body. • Seal efficiency: A low-angle taper-to-taper interference seal, bolstered by a reverse angle torque shoulder, ensures high seal reliability. • The reverse torque shoulder grants higher resistance to compression, bending, and over-torque. • An inner flat design minimizes gas and liquid turbulence, reducing energy loss. • Anti-galling features permit multiple makeups and breakouts. PREMIUM CONNECTION/ RTV-200P STRUCTURE • Our coupling design ensures critical cross-section dimensions exceed those of the pipe body. • Modified hook thread profile with a -4° reverse angle on the load flank and a 10° angle on the lead flank offers superior tensile strength and enhanced compression resistance. 2 3/8"-2 7/8" 8 TPI, 3 1/2"-4 1/2" 6 TPI, 5"-7 3/4" 5 TPI, 8 5/8" up 4 TPI • A patented taper metal-to-metal seal system provides exceptional gas-tight sealing, even under severe combined loads such as bending and temperature stress. • A reverse angle torque shoulder delivers a definitive torque stop for precise, power-tight makeup, minimizing hoop stress in the connection. PERFORMANCE• Our connection strength, with a standard coupling, rivals that of the pipe body. • Seal properties: The low-angle taper to taper interference seal, reinforced by a reverse angle torque shoulder, ensures high seal reliability. • Equipped with hook thread and a reverse torque shoulder, the joint offers outstanding resistance to compression, bending, and over-torque stresses. • An inner flat design reduces turbulence of gas and liquid flow, thereby minimizing energy loss. • The anti-galling design allows for multiple makeups and breakouts, promoting long-term usage.
