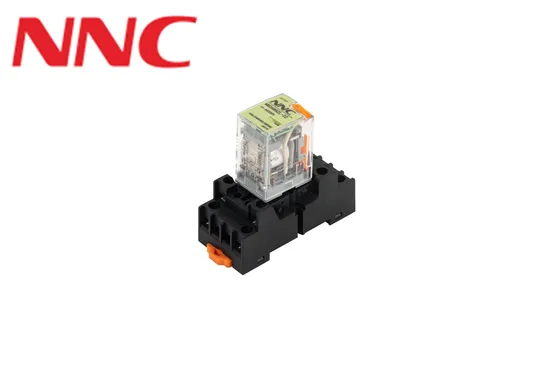

General Purpose Relay Nnc68b (MY2, MY3, MY4) with CE, TUV; UL
| US$1.063-4.60 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
NNC68B(MY)
Electricity Type
AC/DC
Load
Low Load
Protective Characteristics
Enclosed Relay
Action Principle
Electromagnetic Type
Size
Miniature
Type
Electric Parameter Relay
Max.Switching Voltage
240VAC/28VDC
Contact Rating
5A 6.5A 10A
Contact Material
AG Alloy(Agsno2; Agcdo)
Certificate
CCC,CQC,CE,TUV;UL;RoHS
Contact Form
2z(Dpdt);2h(Dpst-No);2D(Dpst-Nc)T3z(Tpdt);3h(Tpst-
Transport Package
Carton
Specification
27.3mm*21mm*35mm
Trademark
NNC
Origin
China
HS Code
8536490000
Production Capacity
500000PCS/Week
Product Description
Specifacation
| Dimension | 27.3mm*21mm*35mm | |||
| Contact Feature | Form | 2Z(DPDT);2H(DPST-NO); 2D(DPST-NC) | 3Z(TPDT);3H(TPST-NO); 3D(TPST-NC) | 4Z(4PDT);4H(4PST-NO); 4D(4PST-NC) |
| Rated load | 6.5A/10A | 6.5A | 5A | |
| Max switching voltage | 240VAC/28VDC | |||
| Contact resistance | ≤100mΩ | |||
| Material | Ag Alloy(AgSnO2) | |||
| Electrical life | ≥1*105 | |||
| Mechanical life | ≥1*107 | |||
| Operate voltage (23ºC) | DC:≤75%*Rated voltage, AC:≤80%*Rated voltage | |||
| Release voltage (23ºC) | DC:≥10%*Rated voltage, AC:≥30%*Rated voltage | |||
| Maximum voltage (23ºC) | 110%*Rated voltage | |||
| Coil voltage | DC6-220V, AC6-380V (Customize allowed) | |||
| Coil power | DC: 0.9W, AC: 1.2VA | |||
| Pick-up time | ≤15ms | |||
| Release time | ≤10ms | |||
| Dielectric strength | Between open contacts of same pole | 1000VAC for 1min | ||
| Between contacts of different pole | 1000VAC for 1min | |||
| Between contacts and coil | 1500VAC for 1min/4500VAC for 1min | |||
| Insulation resistance | ≥100mΩ(500VDC) | |||
| Ambient temperature | --40°C ~ 85°C | |||
| Ambient humidity | 45%-85%RH | |||
| Atmospheric pressure | 86-106KPa | |||
| Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | |||
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | |||
| Installation | PCB or Socket with DIN Rail or Screw | |||
| Weight | Approx. 33g/PCS | Approx. 35g/PCS | ||
| Packing | Carton with paper box inside | 600PCS/Carton, G.W.: 21KG, N.W.: 20KG, Dimension(mm): 330×310×345 | ||
Wiring Diagram NNC68B-2Z(MY2) NNC68B-3Z(MY3) NNC68B-4Z(MY4)
