Heavy Duty PVC Air Lifting Bags for Underwater Salvage (ODB-5)
| US$10.00-12,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ODB-5
Customized
Customized
Condition
New
Material
PVC Coating Fabric
Air Lifting Bags Color
Yellow and Orange
Type
Open Type and Totally Enclosed
Safety Factor
5:1
Performance
High Tenacity, UV Resistance, Abrasion Resistance
Buoyancy
25kg-5ton
Usage
Diving and Lifting Underwater
Transport Package
Carton or Wood Case
Specification
CCS, BV
Trademark
HANTIAN
Origin
Zhejiang, China
HS Code
6307900090
Production Capacity
50set/Month
Product Description

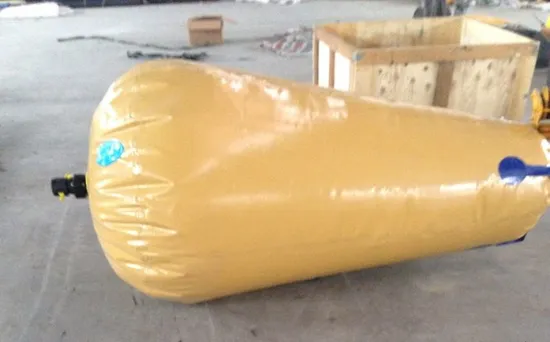

Open Bottom Parachute Type Air Lifting Bags are designed with water drop shaped units, widely used for supporting and lifting sunken objects operation of underwater diving work. The open bottom design make the operation more safety. It's one kind of very useful floataion device for the diving salvage, underwater salvage, and underwater buoyancy support and refloatation.
Open Bottom Parachute type Air Lifting Bags are fabricated from heavy duty polyester cloth coated with PVC . It has safe working load of 5: 1. Each Open Bottom Air Lift Bag is equipped with manual air dump relief/dump valve, which can be controlled easily to change the buoyancy by the bottom rope. And certificated heavy duty polyester webbing with end shackles, and air inlet stainless/ brass ball valves are equipped for the lifting operation. Each parachute lifting bag is complete and ready for use when leaving our manufacturing facility.
Application of Open Bottom Air Lifting Bags
- Deep water salvage and refloatation
- Commercial equipment
- Static buoyancy
- Subsea rigging
| Type | Model | Lift Capacity | Dimension (m) | Dump Valve | Appr. Packed Size (m) | Appr.Weight (kgs) | ||||
| KGS | LBS | Dia | Height | Length | Width | Height | ||||
| Commerical lifeting bags | ODB-25L | 25 | 55 | 0.4 | 0.8 | yes | 0.3 | 0.1 | 0.1 | 2 |
| ODB-50L | 50 | 110 | 0.5 | 0.9 | yes | 0.4 | 0.15 | 0.15 | 3 | |
| ODB-100L | 100 | 220 | 0.6 | 1.1 | yes | 0.45 | 0.15 | 0.15 | 4 | |
| ODB-250L | 250 | 550 | 0.8 | 2 | yes | 0.54 | 0.2 | 0.2 | 5 | |
| ODB-500L | 500 | 1100 | 1.2 | 2 | yes | 0.6 | 0.23 | 0.23 | 8 | |
| Professional lifting airbags | ODB-1 | 1,000 | 2,200 | 1.3 | 2.4 | yes | 0.80 | 0.40 | 0.30 | 15 |
| ODB-2 | 2,000 | 4,400 | 1.8 | 2.6 | yes | 0.80 | 0.40 | 0.30 | 23 | |
| ODB-3 | 3,000 | 6,600 | 1.6 | 4.0 | yes | 1.20 | 0.40 | 0.30 | 35 | |
| ODB-5 | 5,000 | 11,000 | 2.0 | 3.8 | yes | 1.20 | 0.50 | 0.30 | 42 | |
| ODB-6 | 6,000 | 13,200 | 2.3 | 3.4 | yes | 1.20 | 0.60 | 0.50 | 52 | |
| ODB-8 | 8,000 | 17,600 | 2.4 | 3.6 | yes | 1.20 | 0.70 | 0.50 | 60 | |
| ODB-10 | 10,000 | 22,000 | 2.5 | 4.6 | yes | 1.30 | 0.60 | 0.50 | 80 | |
| ODB-15 | 15,000 | 33,000 | 3.0 | 4.3 | yes | 1.30 | 0.70 | 0.50 | 120 | |
| ODB-20 | 20,000 | 44,000 | 3.4 | 5.6 | yes | 1.30 | 0.70 | 0.60 | 160 | |
| ODB-25 | 25,000 | 55,125 | 3.9 | 6.0 | yes | 1.40 | 0.80 | 0.70 | 180 | |
| ODB-30 | 30,000 | 66,000 | 4.0 | 6.3 | yes | 1.40 | 1.00 | 0.80 | 210 | |
| ODB-35 | 35,000 | 77,000 | 4.2 | 6.5 | yes | 1.40 | 1.20 | 1.30 | 230 | |
| ODB-50 | 50,000 | 110,000 | 5.0 | 7.5 | yes | 1.50 | 1.40 | 1.30 | 300 | |
All Air Lifting Bags are manufactured and tested comply with IMCA D016, Rev3-June 2007 Guidelines. Quality is approved by SGS & UKAS in accordance with ISO9001: 2008.
