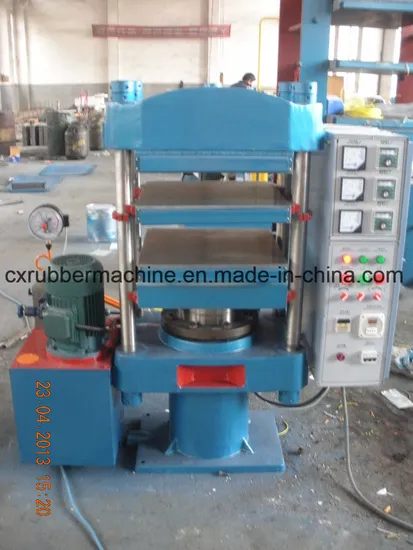

Rubber Plate Vulcanizer/Plate Press Vulcanizer Machine

Product Description

rubber plate vulcanizer/plate press vulcanizer machine
We have ISO9001:2008,SGS,CE standard and offer all kinds of certification according to customer's request:like CO,CIQ,SASO and so on.
1.Material of steel plate:
We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel
2.Weldment of frame : world technique
Welded together as a whole part,Stewing fire treatment after weldment.
(Carbon dioxide gas shielded welding,alloyed welding wire).
submerged arc welding, VSR treatment after weldment.
3.Piston:
the material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable.
4.Heating way&precision temperature control:
Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity)
range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it )
Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C
Also we can produce the machine with water cooling system.
5.Hydraulic system: (PLC control)
the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure.
We use OMRON,SIMENS CHNT , SCHNEIDER ect brand electric parts.
6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.
technical parameter:

Parameters/version	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2/4	XLB750*850*2	XLB1000*1000*2
Mould closing force	0.25	0.5	0.8	1.0	1.6	2.5
Hot plate spacing	125	125	125	125	125	200
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250	250	250	250/500	250	400
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2	2.2	2.2	2.2	3	5.5
The thermal power	2.4kw/board	3kw/board	3kw/board	7.5kw/board	9kw/board	10.8kw/board
Size(l*w*h)	1450*400*1350	1600*400*1440	1450*690*1818	1880*780*1660	2100*1010*1900	2400*960*2500
Weight(kg)	1200	1500	1700	2500/3100	3560/4300	8300
