Fired Clay Brick Drying Machine Automatic Hot Air Drying System Clay Drying Machinery

Product Description

Product Description

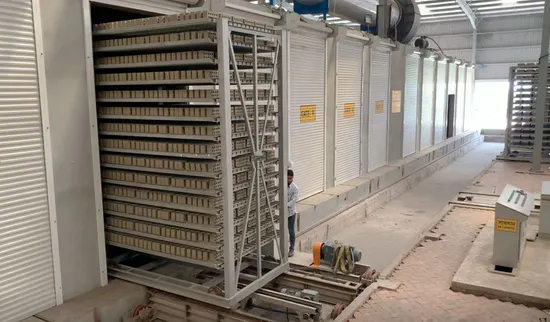

TUNNEL DRYER (MULTIPLE LAYERS RACK)
Tunnel dryer is continuous drying system, each brick do not contact any others so bricks are free from deforming and can getsmaximum efficiency of drying, it is suitable for high-end products like porous blocks, hollow blocks, tiles and facade bricksdrying.
Tunnel Dryer is computer-controlled, continuously operating modern industrial drying solution. Hydraulic pushers move the train ofdryer trolley go through tunnel non-stop at a predetermined rate. This method is ideal for heavy clay and ceramic industriesrequiring high volume production and/or a continuous production process. Computer technology allows dryer trolley movement through the dryer to be controlled for changes in firing curves and firingtemperatures. This increases product recovery and minimizes production disruptions Automatic controls can be programmed to makefiring changes for differences in product size and color.Tunnel dryer vary in width and length, some dryer may be over 90 feet width and 500 feet long.
Scope of application:It is widely used in building materials manufacturing industries of all types of high-end ceramics, clay bricks, clay tiles andporous blocks, cement and other building materials, the dryer and handling system control are highly intellectualized andintegrated, technology is tested by market, which assure stable performance and high efficiency.
FEATURES AT A GLANCE
Continuous Production
Continuous Production
A tunnel dryer is in continuous production. Computer technology allows dryer trolley movement through the dryer to be controlled
for changes in firing curves and firing
temperatures.
Less defects and high efficiency
each brick do not contact any others so bricks are free from deforming and can gets maximum efficiency of drying.
Automatic Computer-controlled
Computer technology allows dryer trolley movement through the dryer to be controlled for changes in firing curves and firing temperatures. This increases product recovery and minimizes production disruptions Automatic controls can be programmed to make firing changes for differences in product size and color.
High capacity
Pushers move the train of trolleys non-stop at a predetermined rate. This method is ideal for all ceramic industries requiring high volume production and/or a continuous production process


Product Parameters

Model	Dryer trolley dimensions (mm)	Dryer dimensions (m)	Numbers of trolley in each tunnel	Numbers of bricks on each trolley(pcs)	Capacity solid bricks (pcs/day)	Number of tunnels	Drying cycle (hours)
BM12	2800*1825*3913	73.4*39* 4.8	26	2016	200,000	6 dual tunnels	36-48

Successful project
Company Profile
Nanjing Brickmac Engineering Co., Ltd. is professional turn-key brick project provider and brick making machinery supplier in Nanjing, Jiangsu Province, China. We provide:
a) Turn-key design and technical consultation of bricks/tiles production line;
b) Manufacturing and set up of brick/tile machinery, dryer and kiln.
We export machinery to over 15 countries including Vietnam, India, Nepal, Uzbekistan, Malaysia, South Africa, etc. Our product range including Box feeder, Crusher, Mixer, Vacuum Extruder, Brick Cutter, Bricks Loading & Unloading system,
Robotic Setting Machine, Tunnel Dryer, Chamber Dryer, Tunnel Kiln, Assembly tunnel kiln, Kiln Gas Burner, Bricks Packing
System, etc.
