XCMG Manufacturer Used Aerial Work Platform Xgs22 China Top Quality 22m Small Mobile Electric Hydraulic Self Propelled Telescopic Boom Man Lift Machine for Sale

Product Description

XCMG Manufacturer Aerial Work Platform XGS22 China Top Quality 22m Used Small Mobile Electric Hydraulic Self Propelled Telescopic Boom Man Lift Machine.

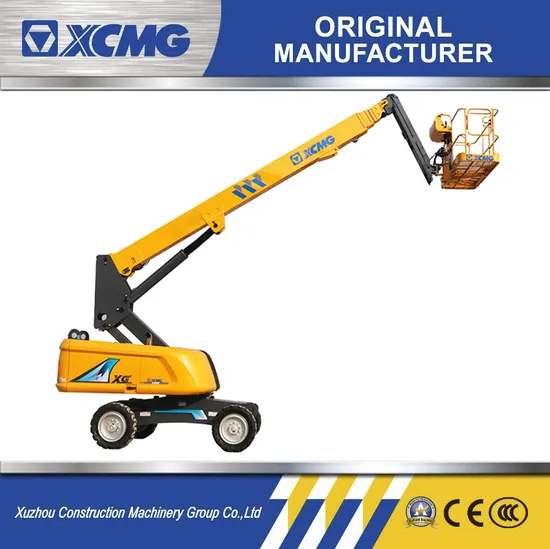

XGS22 self-propelled Telescopic Mobile Elevating Work Platform highlights with outstanding performance, efficiency, dynamics and easy operation. It is leading in the industry with maximum carrying capacity of 460kg, high operation height and amplitude, suit for construction of large load and wide operation area.
Advantages and features:
* Dual parallel linkage and telescopic arm could realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.
* With 4WD, off-road wide tires and axle balance system, the machine is excellent in drive and adaptability to road.
* Multi-load envelope control technologies could real-time monitor the load, effectively making use of boom and making its work performance at leading edge.
* Auto balance extending mechanism improves safety of extending mechanism and extends service life of steel rope.
* Electrical control system adopts the distributed control technologies based on PLC and CAN, implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Product Parameters

Item	Unit	XGS22
A whole machine length	mm	10040
B whole machine width	mm	2490
C whole machine height	mm	2460
D wheelbase	mm	2500
Max. Operation height	m	22
Max. Platform height	m	20
Max. Operation extend	m	16.6
Max. Load capacity	kg	300 (unrestricted)/460 (restricted)
Luffing range of boom	°	-3~+73
Rotation angle of turntable	°	360
Max. Tail swing	mm	1270
Platform size	mm	2400×900
Platform rotation angle	°	160
Whole machine weight	kg	12300
Max. traveling speed	km/h	6.3
Min. Turning radius	m	6
Min. Ground clearance	mm	230
Max. gradeability	%	45
Tire specification	-	Solid tire 36×14-20 Or Foam Tire 355/55D625
Engine model	-	Yuchai 4D2404
Rated engine power	kW/(r/min)	36.8/(2700)

Product Show
