China Manufacturer Factory Outlet OEM/ODM 560d Pump Seal Sprung Metal Sewage Pumps Submersible Pump Chemical Pumps Double Face Machinery Seal

Product Description

Product Description

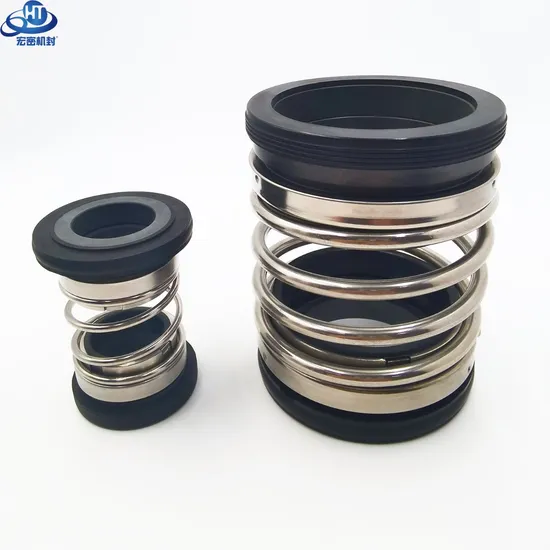

560D series mechanical seals are mainly used in WQ submersible sewage pumps for municipal sewage treatment and transportation, metallurgy, mining, thermal power plants, construction sites, sewage treatment plants, sewage treatment ponds, sewage removal and transportation, can be used for the treatment and transportation of sewage containing solid particles, long fibers, and other impurities, such as sludge, and so on, and its structural characteristics for the internal installation of the double-end face, the large spring, non-equilibrium type structure.
Working Conditions

Pressure	≤0.8 MPa
Temperature	-20~150 ºC
Speeds	≤10 m/sec

Combination Materials

Rotary ring	carbon, resin-impregnated B tungsten carbide, cobalt-bound U1 tungsten carbide, nickel-bound U2 silicon carbide without free silicon Q1 silicon carbide with free silicon Q2
Stationary ring	tungsten carbide, cobalt-bound U1 tungsten carbide, nickel-bound U2 silicon carbide without free silicon Q1 silicon carbide with free silicon Q2 Alumina V
Auxiliary Seal	nitrile synthetic rubber P EP synthetic rubber E fluorocarbon synthetic rubber V
Spring or other metal parts	CrNi steel F CrNiMo steel G
Materials according to operating condition

Product Drawings

Main Products If you are also interested in the above products, please click the link to view product details

Cartridge Type Mechanical Seals	Double Face Mechanical Seals	Metal Bellow Type Mechanical Seals
Multi-Spring Mechanical Seals	PTFE Corrugated Mechanical Seals	Rubber Bellow Mechanical Seals
Single Face Mechanical Seals	Single Spring Type Mechanical Seals	Wave Spring Mechanical Seals

Company Profile
Hongmi Mechanical Seals mainly produces dynamic mechanical seals for water pumps and polytetrafluoroethylene (PTFE) mouth ring static seal products. Mechanical seal products have involved more than 1000 models and specifications, including assembled mechanical seals, conical spring seals, wave spring seals, parallel spring seals, multi-spring mechanical seals and bellows mechanical seals made of different materials and other products. Meet the sealing requirements in different fields such as vertical pumps, pipeline pumps, end suction pumps, deep well pumps, submersible pumps, chemical pumps and so on. And according to the different media working conditions, we can carry out structural design and material selection.
With "professional, focus, dedication" as the company's development concept, "gathered in a corner, deep plowing". After more than twenty years of pioneering and accumulation, we have set up an innovative and technical team "oriented to the needs of customers". We have obtained 27 utility patents and own many independent core technologies. Since obtaining ISO9000 certification in 2006, we have been improving our management system in practice, and have introduced ERP management system to ensure high quality and efficient service to our customers through process management.
With "craftsmanship, reasonable price, quality service" has won the recognition and praise of customers. We have become the designated supplier of domestic brand enterprises such as "CNP", "LEO" and "NYP".
PRODUCTION EOUIPMENT CAPACITY
Hongmi Mechanical Seals have more than 100 sets of turning, milling, grinding, wire cutting, laser welding, polishing, hydraulic molding, and other special manufacturing equipments required for the production of mechanical seal products.
TESTING AND DEVELOPMENT CAPACITY
Hongmi Mechanical Seals Laboratory has more than 20 sets of various materials physical and chemical testing instruments and field testing equipment. Including mechanical seals running test bench; dynamic speed, pressure, temperature simulation test bench; airtightness test bench; density test, flatness test, flat crystal test, Shore, Rockwell, Shaw hardness test, spring tester, image molding apparatus, and so on.
INVENTORY CAPACITY
Hongmi Mechanical Seals has more than 1,300 kinds of mechanical seals for different working conditions in multiple series, with a standing safety stock of more than 80,000 sets. Can meet customer needs at any time.

Packaging & Shipping
FAQ Q: Are you a factory or a trading company?
A: We are a factory producing mechanical seals and parts, our factory is located in Deqing, Huzhou, welcome to visit us.
Q: Do you accept customized orders?
A: We have our own brand, but we also support ODM and OEM, welcome to customized inquiry!
Q: What is the price of your products?
A: The unit price of each model is listed on the website, but for customers with large demand, you can contact us for price consultation and negotiation.
Q: Can I try to get a sample before ordering?
A: Of course you can, our company provides samples for you free of charge, but you need to pay the international express delivery cost (freight to pay).
Q: How long is the delivery period?
A: After receiving the prepayment, depending on the quantity of the order, it usually takes 2-3 days for small orders and negotiation for large orders.
