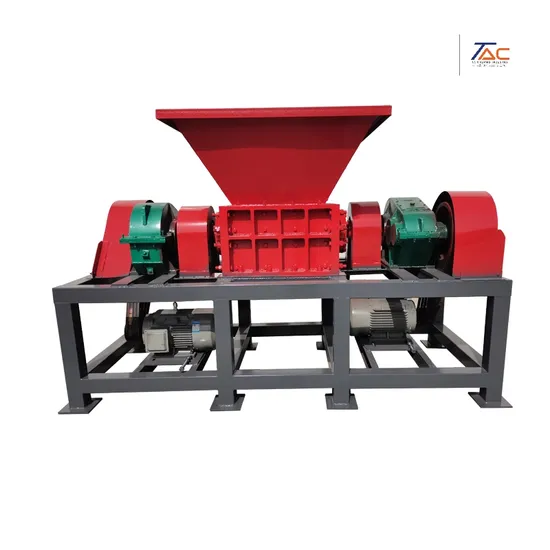

Dual-Shaft Metal Shredders Garbage Shredder Machine

Product Description

Product Description
Shredder machine are used for pre-crushing of materials like plastic barrel, plastic drum, plastic bottle, PP woven jumbo bag etc., which are hard to crush using common granulator. The Pre-crushed materials can increases granulator's capacity, life time of granulator's blades.

Product details
Shredder Boby
The double shaft shredder uses high quality sreel welding to eliminate stress treatment, overall machining, to confirm the machine stability in a long time.
Shafts
Use the high strength and heavy special steel, to provide a powerful driving force for cutting.
Rotary Knife/Fixed knife
Rotary knife uses special alloy steel, forging blank, precision machining, heat treatment and multiple freezing heat treatment technology, to confirm cutting perfprmance and service life.
Working Principle
Double shaft shredder is to cut and shred the materials through the relative rotating of the two sets of cutter shaft, the mutual shearing among the blades of moving knives & the cutter heads and the distance sleeves. The outlet-material control of double-shaft shredder is adopted the network design, the width and length of outlet-materiala is deter-mined on the width of the cutter, and the distance of cutter heards . Two groups of cutter shaft is rotating on different speed which lead to the shearing and shredding materials simultaneously, it improves the efficlency of shredding.
Product Parameters

Model	Spindle power(kw)	Spindle speed(r/min)	Capacity (t/h)	Conveyor power(kw)	Number of blades	Feed port size(mm)	Diameter of blade(mm)	Crushing size(cm)	Solo size(m)	Dimension (L*W*H)(m)	Weight (t)
2600	6-160*2	9-12	25-60	4-3kw	Thickness 100*26	2600x1100	φ800	3-10	3.2*2.0	8.2*4*4.3	36
2200	6-110*2	9-12	20-26	4-3kw	Thickness 100*22	2200x1100	φ650	3-10	2.5*1.8	7*4*4.5	28
2000	6-90*2	9-12	16-22	4-3kw	Thickness 100*20	2000x1000	φ600	3-10	2.3*2	6*3.5*2.4	22
1600	6-75*2	9-12	12-18	4-3kw	Thickness 100*16	1600x800	φ550	3-10	2.6*2	5*3*2.4	14
1400	6-55*2	9-12	8-12	4-3kw	Thickness 100*14	1400x800	φ500	3-10	2*2	4*3*2.4	13
1200	6-37*2	9-12	6-10	-	Thickness 80*15	1200x700(800)	φ400	3-10	1.6*1.5	4.4*1.85*2.2	11
1000	6-30*2	9-12	5-8	-	Thickness 50*20	1000*500	φ360	3-10	1.2*1	3.9*1.5*2.3	8
800	4-18.5*2	9-12	3-5	-	Thickness 40*20	800*450	φ300	3-10	0.9*1	3.5*1.4*2	3.1
600	4-15*2	9-12	2-3	-	Thickness 30*20	600*350	φ210	3-10	0.82*0.9	3.1*1.3*1.9	2.5
400	4-7.5*2	9-12	0.8	-	Thickness 20*20	400*350	φ210	3-10	0.6*0.5	2.1*1.3*1.6	1.8

When shooting and displaying products, this product is a real object, and the photos will have color difference.
Application
The shredder machine can easily pre-crush:
1. plastic sheets.
2. electronic waste.
3. scrap(components, subassemblies; consumables).
4. metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes).
5. aluminum cans.
6. wood(wooden pallets or fruit boxes).
7. plastic(plastic bottles or canisters).
8. waste tire, rubber.
9. waste household appliances.
10. paper waste(cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging material).
11. textiles(rags, garments, carpet).
12. animal bones and organic waste.
Packaging & Shipping
1. Inner package of shredder machine: plastic packing.
2. Outer package of shredder machine: Wooden case.
3. Delivery of shredder machine: Within 30 days after order. Company Profile
Our company mainly sells mechanical equipment and accessories, pipeline equipment, refractory materials, abrasive materials, water pur -ification equipment, wire and cable. Our company follows the human-oriented, honest, pioneering entrepreneurial spirit with scientific and technological innovation. We have a -lways regarded the technology as the motive force, the market as the orientation to ma -ke the products first-class.
FAQ
Q: How about the quality of your products?
A: We put the quality in the first place based on the honesty. Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before the delivery.
Q: How about the price?
A: We pursue small profits but quick turnover, and we can give you lower price than other trading companies. Besides, customers from website can get a discount. If the product is really suitable and can benefit you, the price is negotiable.

Q: Do you provide equipment operation training? A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports. Q: Can you help chose suitable products? A: Yes. We have many experts who have worked in this field for many years. They can help you select the most suitable products according to your actual condition. And they can design proper process flow based on your special situation. If necessary, we can even send professionals to your local place for site planning and work-flow design. Q: When do you deliver the goods? A:We usually deliver the goods within 10 days depending on detailed product. We will advise the detailed delivery time according to your specific inquiry. Q: Do you provide after-sale service? A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly.
