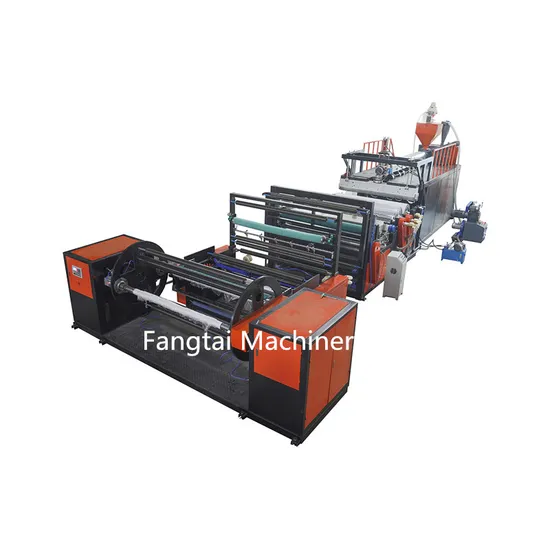

CPE/TPE Film Casting Machine for Protection Cloth Gloves

Product Description

1. The film produced by extrusion casting method, because it can make a variety of materials with different characteristics compound with each other during the extrusion process, so that the product has the excellent characteristics of different materials and can be improved in characteristics. Complementary, so that products can obtain special requirements of performance and appearance, such as oxygen and moisture barrier, permeability, transparency, fragrance retention, heat preservation, UV protection, pollution resistance, low temperature heat seal ability and strength, Mechanical properties such as stiffness and hardness;
2. Thinner, better thickness uniformity;
3. Good transparency and good heat sealing performance;
4. Good internal stress performance and good printing effect.
The main purpose of the product
1. Sanitary products: medical surgical gowns, disposable bed sheets, sanitary napkins, baby diapers, pet pads, shoe covers, head covers, etc.; 2. Daily necessities: various tablecloths, gloves, aprons, shower curtains, suit covers, raincoats, etc. Beach umbrellas, chair covers, wardrobe covers, blanket covers, etc.; 3. Industrial product packaging: typewriter covers, computer covers, air conditioner covers, photocopier covers and dust covers for various machines.

Specification
Model	FT-TPE1000
Raw material	TPE
Film structure	Single layer
Film accuracy	≤±5%
Max. Film width	1000mm
Thickness	0.015mm-0.06mm
Extrusion output	80-100kg/h
Extruder A
Screw diameter	80mm
L/D	32:1
Screw material	38CRMOLA with nitrogen treated
Barrel material	38CRMOLA with nitrogen treated
Screw heating ring	aluminum heat ring
Main power	30kw with inverter control
Inverter	30kw
Gear box	180 model, hard tooth face, water cooling, oil pump
T-die
Die head width	1250mm
Max. Film width	1000mm(500mm×2)
Die head gap	0.8mm
Die head heating	7×3kw, inter heating
Die head material	High quality NO.45 steel
Die head treatment	Chromed
Net change	By human
Traction unit
Cooling roller width	1200mm, 2pcs
Cooling roller type	Mirror type
Cooling roller diameter	420mm
Cooling method	Water cooling
Traction power	2.2kw width inverter control
Inverter	2.2kw
Slitting device	1 set
Rewinding unit
Rewinding roller diameter	ф420mm
Max. Rewinding roller	Ф500
Rewinding power	2.2kw
Inverter power	2.2kw
Rewinding length control	Meter account
Rewinding change type	Automatic
Rewinding type	Fiction type
Dewaxing roller	1 pc
