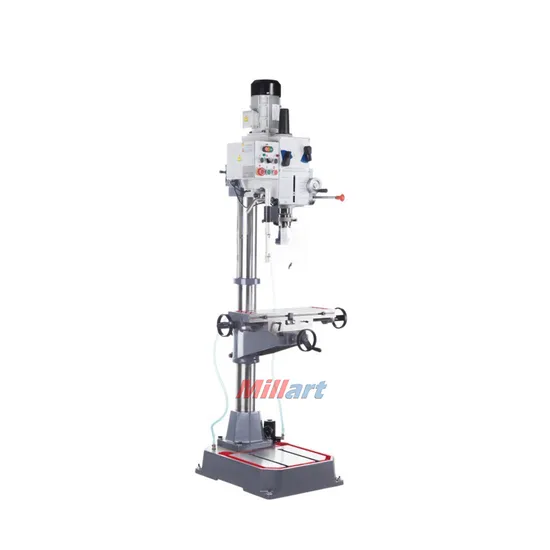

Z5032c Z5045c Z5050c Vertical Cross Table Drilling Machine with CE Standard, Upright Drill Machine

Product Description

Product Description
Technical parameter :
Feature :
Drilling, milling and tapping
Worktable can move X Y Z axis
Head swivels 360 degree horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindle lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
Technical parameter :

Model	Z5032C	Z5040C	Z5045C
Max.drilling capacity	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Spindle travel	130mm	130mm	130mm
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Distance from spindle axis to column	290mm	290mm	290mm
Distance from spindle nose to table	700mm	700mm	700mm
Distance from spindle nose to base	1125mm	1125mm	1125mm
Max travel of headstock	250mm	250mm	250mm
Swivel angle of headstock	360/ 90 degree	360/ 90 degree	360/ 90 degree
Max travel of worktable	600mm	600mm	600mm
Worktable size	730x210mm	730x210mm	730x210mm
Worktable travel X,Y,Z axis	500x205x570mm	500x205x570mm	500x205x570mm
Base size	417x416mm	417x416mm	417x416mm
Swivel angle of table	360 degree	360 degree	360 degree
Table tilt	+/-45 degree	+/-45 degree	+/-45 degree
Size of stand base	417x416mm	417x416mm	417x416mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Net weight/Gross weight	450kg/500kg	452kg/502kg	455kg/505kg
Packing size	1850x750x1000mm	1850x750x1000mm	1850x750x1000mm

Sandard accessories:
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Machine vice
Coolant system
Work lamp
Spindle guard Company information:
