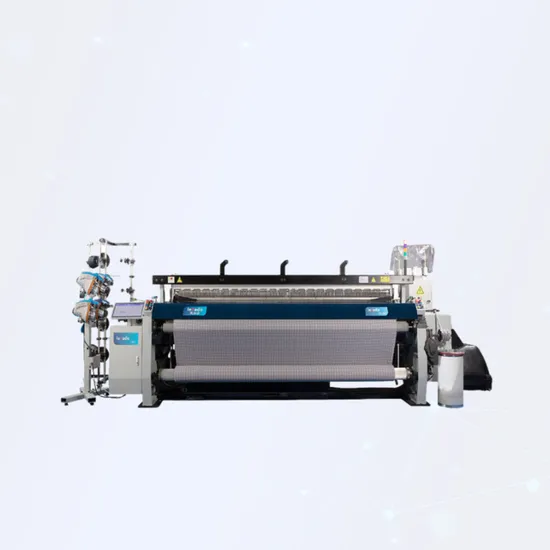

Lenado Tn-I High Quality Beating-up Air-Jet Fabric with Jacquard Electronic Weaving Machine

Lenado Tn-I High Quality Beating-up Air-Jet Fabric with Jacquard Electronic Weaving Machine

US$10,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Lenado TN-i 190
Computerized
Computerized
Precision
High Precision
Certification
ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
One Year From The Date of Shipment
Effective Width
190,220,230,250,260,280,340,360,400cm
Yarn Count Range
Short Fiber or Long Filament
Heald Frame
Enhanced
Take-up Device
The Cloth Roller
Transport Package
Export Packing
Trademark
Lenado
Origin
China
HS Code
8446309000
Production Capacity
1000pieces/Year

Product Description


TECHNICAL SPECIFICATIONS
Effective width 190,220,230,250,260,280,340,360,400cm
Effective width reduction 190cm: at least 70cm
220 and 250cm:at least 90cm
280,340,360and400cm:at least 96cm
Weft color selection Up to 8 colors
Double or multiple weft insertion
Weft feeder Adjacent yarn loops
Separating yarn loops
Automatic switch function of weft feeder
Positive weft tensor Programmable weft tensor
Balloon limitor
Weft detection Electronic weft scissors,each Channel can set the cutting time separately
Yarn change detector
Fixed and oscillating main nozzle
Auxiliary nozzle
Lenado's knot removal decive
Beam 800,914,1000,1100mm
Back-beater Universal type with built-in warp tension sensor
Stable mechanism
Stop device 6 electonic drop bars
25mm pitch or 8 drop bars
16mm pitch detection strip by strip
Take-up device Roll diameter
Direct take-up by pressing rollers
Main motor The main motor directly drives the loom
Intelligent frequency conversion control vehicle speed
Reed movement Conjugate cam,with cam follower
Shedding Positive dobby shedding for up to 16 shafts heald frame
Positive cam shedding for up to 8 to 10 heald frames
Cam mechanism with automatic levelling function
Heald frames for 330mm(13 o'clock) heald wire


Sales and service network
Our services
1.Reply customer inquiry in 24 working hours.
2.Experienced answer all your questions in profession and fluent English.
3.Customized design is available OEM&ODM are welcome.
4.We are manufacture,we can provide best quality with best price to you.
5.Prominent and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
FAQ
Q1:Are you a manufacturer or Trade company?
We are a professional manufacturer holding our own International Trade Department, for that we can understand customer's needs and offer a reasonable price.
Q2:Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation.Besides, we would send you our exposition and relative informantion to promote a face-to-face meeting if you'd like to.
Q3:ls the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q4:How about the quality?
The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
Q5:How's the after-sale service?
We offer engineers available to service overseas under merchandisers supervision and translation.
