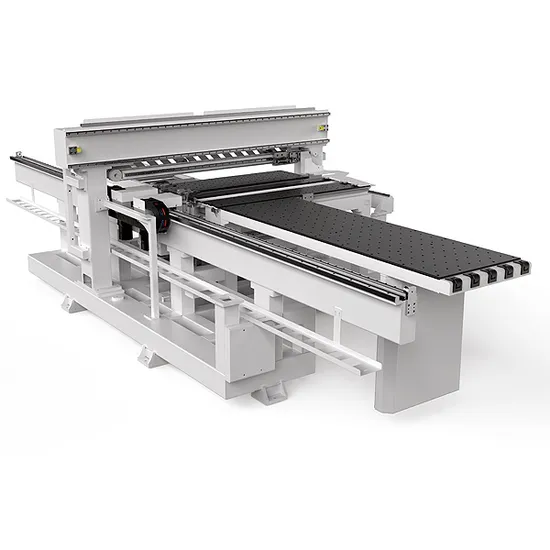

Tqs CNC H-612ks Six Side/6-Side Drilling Machine for Wood Work

Product Description

Stroke of each axis Max. positioning speed	X axis	5000mm & 140m/min
	Y axis	1200mm & 80m/min
	Z axis	90mm & 30m/min
	U axis	1200mm & 60m/min
	V axis	1200mm & 80m/min
	W axis	60mm & 30m/min
	A axis	5000mm & 140m/min
	Y2 axis	1500mm & 80m/min
	Z2 axis	90mm & 30m/min
Working range	Max. board width(vertical)	1200mm
	Min. board width(vertical)	35mm
	Max. board length(vertical)	5000mm
	Min. board length(vertical)	70mm
	Max. board thickness(vertical)	50mm
	Dust extracting quantity	7300m³/h
Boring Combination	Vertical drill bits	Bottom:9 pcs Upper:2*12 pcs
	Horizontal drill bits	2*8 pcs
	Drill bits rotation speed	3400rmp(r/min)
	Motor power of drill pack	3.5Kw *2
Air Cooling Spindle	Spindle Type	Er25
	Collet	1/2 Inch
	Spindle Speed	18000rpm(r/min)
	Working table height	950mm
	Saw blade (optional)	1pcs
	Motor power	25.85Kw
	Voltage	380V/50Hz
	Working pressure	0.7-0.8Mpa
	Dimension	5200x2840x2200mm
	Weight	Approx.. 3900kg

Rigid body frame Main structure is solid welded, and done the tempering treatment, to ensure the stability of the machine, without the deformation.

CC Brand drill pack Adopts CC brand drill pack, which has been tested by the market, with high working precision. Configuration: upper 12V*2+ 8H*2 Lower: 9V Saw blade as optional.

Side alignment device Equip with automatic high precision side align device, which can do the positioning according to the different board width.

Bar code scanner Considering to cooperate with the furniture design software, the machine comes with Bar Code scanner, can achieve the quick NC program importing.

Board detecting device Equip with board detecting device, which will detect the boards size automatically, and reduce the tolerance which is caused by manual checking.

Air floating table The feeding table adopts air floating structure, which can reduce the board surface damages; meanwhile will reduce the man-power needs of heavy board feeding.
