High Speed Automatic Multiple Layer 1500mm Extrusion Stretch Cling Film Making Machine for Plastic Film Extruder Line
| US$65,000.00-95,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PB-L65/90/65X1850
Type
Plastic Extruder
Plastic Processed
LDPE /LLDPE
Product Type
Stretch Film Machine
Feeding Mode
Multiple Feed
Assembly Structure
Separate Type Extruder
Screw
Multi-Screw
Exhaust
Don′t Exhaust
Automation
Automatic
Computerized
Computerized
Vlotage
Customized
Power (Kw)
180kw
Screw Diameter
90mmx1, 65mmx2
Screw L/D Ratio
30:1
Output (Kg/H)
180 - 280kgs
Weight
15t
Package
Plastic Film Wrapping
Inverter
Delta Taiwan
Transport Package
Standard Packing
Specification
L12500/W5500/H3800
Trademark
PYM
Origin
Zhejiang Province Wenzhou City
HS Code
84778000
Production Capacity
200sets/Year
Product Description
Product Descriptionhigh speed automatic multiple layer 1500mm extrusion stretch cling film making machine for plastic film extruder line
Product Specification
| Model No. | PYM-65/90/65*1850 |
| Screw Diameter | 65/90/65mm |
| Screw L/D | 30:1 |
| Screw Speed | 50-150rpm |
| Layer Structure | ABC/ACBCA |
| Film material | PE |
| Film Width | 1500mm/3*500mm |
| Film Thickness | 0.01-0.05mm |
| Electric power supply | Customized, Standard is 380V/50HZ/3P |
| Total Power | 130KW |
| Capacity | 180-300Kg/h |
| Total weight | 13.5T |
| Dimension | 13.5M*3.5M*3.5M |
Product Advantages Easy operating, long life, energy saving Stable and reasonable extrusion High quality T-die for excellent film evenness and stability Enhanced cooling system
(adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller) Advanced oscillation (swing) system Highest winding speed (up to 200m/min) among similar stretch film machines High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min Optional full automatic thickness gauge Excellent stretch film rolls quality for both hand use rolls and stretch use rolls Machine details:
T-Die with vacuum system:
Edge film trimming guiding roller:

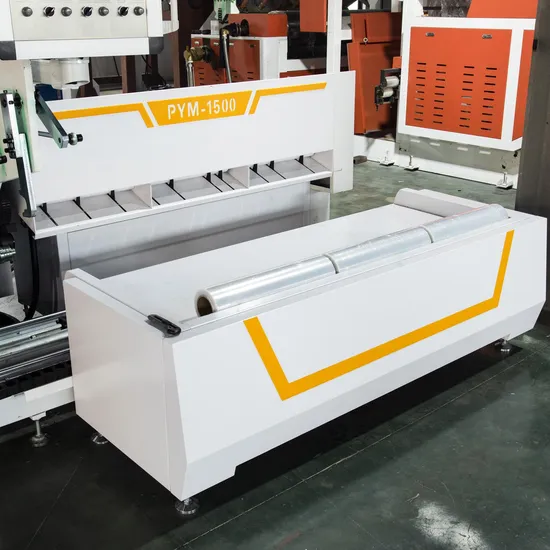

Automatic Rewinder to make max.width 1500mm or 3rolls x 500mm:
Option: (automatic roll discharge & auto paper core loading)
