X-ray Pallet Scanner Best Price in China for Airport Warehouse Large Pallet Cargo Security Inspection

Product Description

Product Description

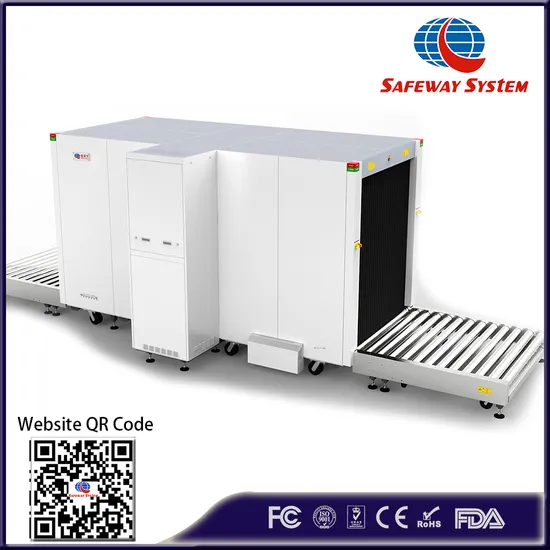

AT150180B is the biggest size x-ray security scanner, which is originally designed and manufacturer by our own. Also, we are the first one in China who make this big x-ray machine. During these years, our sales perfect the product quality year by year and the product becomes manture. Every year, Safeway Inspection System invest a large amount of labors and resources in the development of new technology and models. We own all the copyrights and patents, from the outlook design to the software. Safeway system is the market leader and one of the very few companies in China who can creat creatively.
Product highlights
* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Uninterruptable power supply (UPS)
* Threat alert and material classification
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Drugs and explosives inspection
* Indication of the date and time
* baggage counter
Product Parameters
X-ray Machine for Large Cargo Pallet - FDA Compliant

Physical Specifications
Unit weight (kgs)	1150
Unit size (mm)	2127(L)*2230(W)*2338(H)
after packed in wooden pallet -
Gross weight (kgs)	1350
Packing size	#1: 285*250*276cm
	#2: 113*91*142cm
General Specifications
Tunnel size(mm)	1500(L)*1800(W)
Conveyor Speed(m/s)	0.5
Conveyor height(mm)	350
Conveyor Max Load(kgs)	2000
X ray dose per each inspection	1.5 μGy
X ray leakage	<0.25 μGy / h
Penetration	43mm steel
Wire Resolution	dia 0.0787mm copper wire (AWG40)
Penetration Resolution	dia 0.16mm copper wire (AWG34) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial resolution:	dia1.0mm,Vertical: dia1.0mm
Power Consumption	max. 2KW
Noise	< 58 dB
Film Safety	Guarantee ASA/ISO1600 Film
X-ray Generator (single)
Anode Voltage	160-200 KV
Anode power	0.4-1.2mA (adjustable)
Generate direct	80 degree downward
Cooling / Duty Cycle	from top to bottom
Brand	Spellman
Image System
X-ray Sensor	L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Image Display	High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement	1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall	All preceding images recallable, retrieval
Explosives & Narcotics Detection	Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm	Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection	Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive	Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions	Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications	Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process	24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags
Operating Environment
Operation temperature/Humidity	0ºC-45ºC / 5%-95%(non-condensing)
Storage Temperature/Humidity	-40ºCto 70ºC / 5%-95%(non-condensing)
Operation Power	220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS	15mins, 30mins, 60mins etc, optional
Computer and other
Monitor	High Resolution Color, LCD Accord, 17inch
Hard Disk	SEAGATE 500G 3.5"
CPU	G1610 2.6G
Storage	2GB 1600MHz DDR3 Innodisk
Main board	H61 SYM76993VGGA
Compliance
International	* ISO19001 ; ISO14001 ; OHSMS18001 ; * CE * USA FDA * Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard - less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface)
National (China)	* Health Inspection Report * Computer Software Copyright Registration Certificate * Software Product Registration Certificate * Radiation Safety Certificate from Ministry of Public Security * Quality Certification from Safety and Electronic Products Quality Inspection Center * Design pantent certification: Patent No. : 201020700245.2 ; Patent No. : 201020700245.8 ; Patent No. : 201020700256.0

Certifications
Installation Instructions

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

X-Ray Baggage Scanner Product Index
NO.	Model	Remarks
		Tunnel Size	Generator	View	Brands of Generator
1	AT 5030C	500*300mme	single	one	self made
2	AT 6040B	600*400mm	single	one	Spellman 160 Kv
3	AT 6550B	650*500mm	single	one	Spellman 160 Kv
4	AT 8065B	800*650mm	single	one	Spellman 160 Kv
5	AT 10080B	1000*800mm	single	one	Spellman 160 Kv
6	AT 10080D	1000*800mm	two	two	self made
7	AT 10080T	1000*800mm	three	three view / 3D	self made
8	AT 100100B	1000*1000mm	single	one	Spellman 160 Kv
9	AT 100150B	1000*1500mm	single	one	Spellman 200 Kv
10	AT 150180B	1500*1800mm	single	one	Spellman 200 Kv
11	AT 2300	Portable and mobile x-ray scanner
Available and customizable models
NO.	Model	Remarks
		Tunnel Size	Generator	View	Brands of Generator
1	AT 100100D	1000*1000mm	two	two	self made
2	AT 100100T	1000*1000mm	three	three view / 3D	self made
3	AT 150100B	1500*1000mm	single	one	Spellman 160 Kv
4	AT 100150D	1000*1500mm	two	two	self made
5	AT 150180D	1500*1800mm	two	two	self made

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
Safeway Inspection System Limited.
Address: QiFeng Digital Park, BaiNiKeng, PingHu Street,
LongGang District, Shenzhen, China, 518108
Brand: Safeway System
Website: safewaysystem.en.made-in-china.com
To be the best manufacturer of cargo and vehicle inspection system
