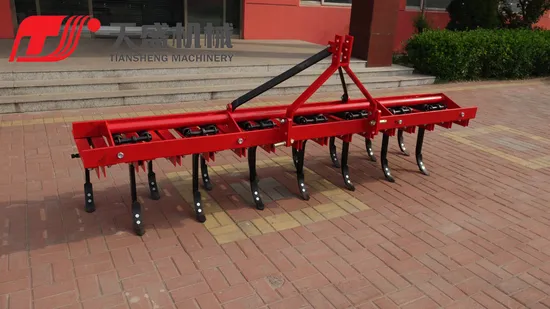

New High Quality Heavy Duty Spring Cultivator for Farmland Soil Preparation

Product Description

Product Description

SHANDONG TIANSHENG MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD


The 3ZT series of spring cultivator is developed from our company according to the demand of foreign market. This machine adopts double-spring tension device which enables the tines during operation to bounce when meet with obstacles and return to normal working quickly after over them,by which the tines are protected .It has advantages of row spacing to be conveniently adjusted and the depth to be easily controlled. and the machine is suitable to cultivate and loosen soil in the corn, cotton and beans field.Advantages:
This type of Spring tooth Cultivator have shovel and tyne for choice. The shovel (or the tyne) already has been heat treated, hard enough to afford the collision while engage with the rocks, boulders and other obstructions. It is a tractor mounted spring cultivator for 25-100hp tractor.

Model	Unit	TS3ZT-1.0	TS3ZT-1.4	TS3ZT-1.8	TS3ZT-2.2	TS3ZT-2.5	TS3ZT-3.0
Working width	m	1.0	1.4	1.8	2.2	2.5	3.0
No. of tines	pcs	5	7	9	11	13	15
Working depth	mm	100-200	100-200	100-200	100-200	100-200	100-200
Total weight	kg	260	320	400	490	550	640
Matched power	hp	18-30	30-40	40-50	50-70	70-90	100-120
Linkage	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted

Company Profile

After Sales Service
All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.

Other products

Due to the limited number of pictures uploaded,we have many products that are not on display.
All products are independently developed and manufactured by us.
If you are interested in our factory or our products,feel free to contact me.
