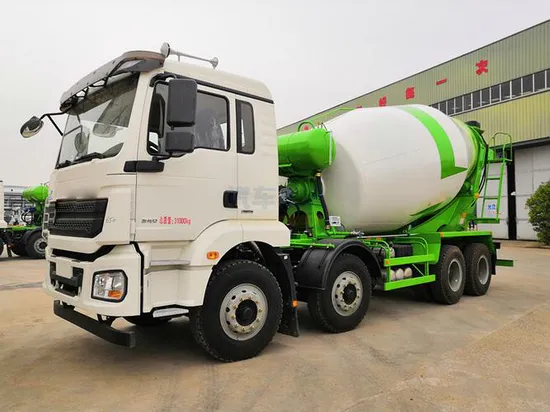

Brand New Shacman 6*4 F3000 10cbm Concrete Mixer Truck with Parameters
Basic Info.
Model NO.
F3000
Type
Concrete Mixer
Shotcrete Type
Dry
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
240m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Condition
New
Color
White
Capacity
10cbm
Curb Mass
14000kg
Rated Output Power
340HP
Max. Gradeability
25%
Driving Type
6^4
Transport Package
Nude Package
Specification
10050*2500*3960mm
Trademark
EVANGEL
Origin
China
HS Code
8474310000
Production Capacity
100
Packaging & Delivery
Package Size
1100.00cm * 600.00cm * 700.00cm
Package Gross Weight
25000.000kg
Product Description
Brand New SHACMAN 6*4 10Cbm Concrete Mixer Truck With Parameters Product Description1.Stirring device is mainly composed of mixing drum and auxiliary support components.< Mixing drum of concrete loaded containers,rotates the concrete along the blade spiral direction, constantly in the process of ascension and turning by mixing and stirring.in the process of feeding and transport, mixing barrel forward, concrete, moving along the blade into the discharge, the mixing tube inversion, the concrete to discharge along the blade.
2.Blade is the main components in the mixing plant, serious wear and tear or damage can lead to concrete mixing unevenly. In addition, the Angle of the blade if the design is not reasonable, still can make concrete segregation.
3.Cleaning system is the main purpose of cleaning the mixing barrel, is also sometimes used to transport on the way to dry mixing drum. Cleaning system and cooling effect to the hydraulic system. Totally enclosed device adopts rotary sealing technology, sealed the mixers in and out of the mouth, to solve the traditional mixing heavy evaporation, stratification of mortar,concrete material spilled, the series of problems such as driving safety.
| Dimension(Lx W xH)(mm) | 9500×2500×3950mm |
| Total mass(kg) | 25000kg |
| Kerb mass(kg) | 14000kg |
| Rated mass(kg) | 10870kg |
| Approach / departure angel | 20/19 |
| Front/rear suspension(mm) | 1525/2445 |
| Max. gradeability (%) | 25 |
| Engine brand | Weichai Engine |
| Engine model | WP10.340E22,340hp |
| Rated output power | 250kw |
| Rated speed(rpm) | 2200rpm |
| Emission Standard | E-II |
| Displacement(L) | 9.726L |
| Driving type | 6×4 |
| Axle number | 3 |
| Wheel base(mm) | 3775+1400mm |
