China Locosc 500kg 1000kg Sqb Weighing Pressure Sensor Shear Beam Zemic Load Cell

Product Description

Description---------------------------------------------------------------------------------
LP7110D shear beam load cell combines alloy steel or stainless steel elastomer with a high precision strain gauge to produce a reliable weighing load cell. It is a high accuracy, low profile shear beam available in a wide range of capacities. Full stainless steel or alloy steel construction with potted environmental sealing provides an economical solution for a broad range of weighing applications.
Available with a range of load introduction systems, the blind hole variant combined with self-aligning load feet ensure optimum weighing accuracy. This product can be used in industrial scale (platform scale, hopper scale, belt scale, etc), weighing module, and force measuring equipment.
Application----------------------------------------------------------------------------------
Platform weighing machines, pallet truck scales, tank and vessel weighing systems, conveyor scales and patient weighing systems such as intensive care beds and wheelchair scales, etc.
Feature---------------------------------------------------------------------------------------
1. Alloy steel or stainless steel construction
2. Environmentally sealed by potting to IP67 / IP68
3. Ideal for industrial platform scales
4. Wide range of capacities from 100kg to 10t
5. Unique blind loading hole
6. High input resistance 385±10Ω
Specification-------------------------------------------------------------------------------

Rated capacity	250/500kg
	1/1.5/2/2.5/3/5/7.5/10t
Accuracy class	C3
Rated output	2.0±0.002mV/V
Temperature effect on zero	±0.02%F.S/10ºC
Temperature effect on sensitity	±0.02%F.S/10ºC
Creep (30 min)	±0.02%F.S
Input resistance	385±10Ω
Output resistance	351±2Ω
Operating temperature range	-30ºC ~ +70ºC
Insulation resistance	≥5000MΩ (at 50V DC)
Safe overload	150%F.S
Destructive load	300%F.S
Excitation recommend	4~12V DC, max 15V DC
Construction	alloy steel or stainless steel
Protection class	IP67 / IP68
Cable length	4 core cable standard lengths	3m (500kg ~ 3t)
		6m (3~10t)
	diameter	Ø 5
	option	customized cable length

Connection Mode-------------------------------------------------------------------------

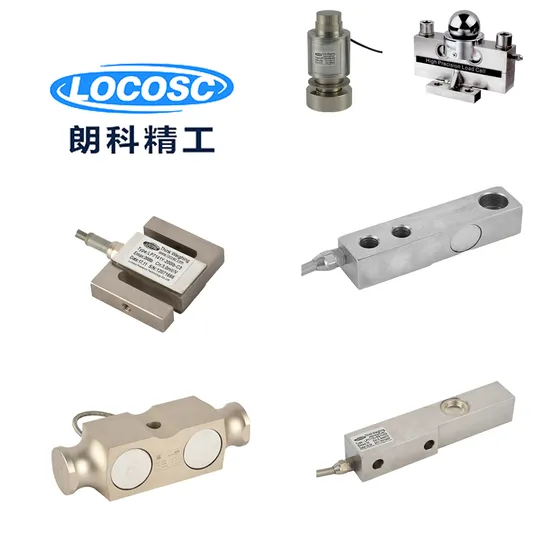

From high precision micro-analysis to more than 100 tons of weighing application, we specialize our products and solutions around various processes of the petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry. Main products: electronic weighing scale (bench scale, floor scale, platform scale, crane scale, animal scale, pallet truck scale), digital weighing indicator, load cell, sensor, weighing module, etc.
Our products have been well sold all over China, and 60% of them are exported to North America, Europe, South America, Southeast Asia. Besides, LOCOSC is an experienced company for ODM & OEM service. We have cooperation with well-known enterprises both at home and abroad. We owe our achievement to your trust and the driving force for self-transcendence. We promise to improve performance and reduce costs with abundant energy and passion.
LOCOSC NINGBO PRECISION is a manufacturer of weighing apparatus and high precision instruments for professional use. Adhering to the business philosophy of "Modular craft, Pipelining production, Integrated brand, Global service", we are responsible for the R&D, manufacturing, solutions, sales and after-sales services of weighing instrument. We are headquartered in Ningbo and have branches in Shanghai, Guangzhou, Zhengzhou, Beijing, Chengdu, America. We have more than 500 employees and a factory area of 23,000 square meters.
The annual production capacity of LOCOSC is 30,000 bench scales, 30,000 floor scales, 4,000 truck scales, 200,000 weighing indicators, 500,000 load cells, 20,000 crane scales, 20,000 platform scales, 500 loader scales, and more than 100 weighing systems. Each product of LOCOSC has its uniqueness and has been awarded many certifications, such as ISO9001, NTEP, OIML, CE.
Why Choose Us---------------------------------------------------------------------------
1. Your inquiry will be replied within 12 hours.
2. OEM or ODM projects are welcomed.
3. We send samples for customer to check the quality.
4. We provide an English manual for using and maintaining.
5. All products and accessories have been tested by three times before ship out.
6. All products have one year warranty. If there is no man-made problems, we will replace or repair for your freely.
7. We have a professional R&D team.
8. We provide good quality, on-time delivery and competitive price for you.
9. We offer the best after-sale service. If any problems happen, our team will do our best to solve for you.
FAQ--------------------------------------------------------------------------------------------
1. How to place an order for products?
Let us know your requirement or application, we will give you a quotation in 12 hours. Then we will send the PI after you confirm the order.
2. Do you have any minimum order quantity limit for load cell?
One piece for sample checking is available, but the sample price is high. In the mass production, unit price depends on the rough idea of Qty., the more the better.
3. Do your company have any certificate for products?
Yes, we have been awarded certifications, such as ISO9001, NTEP, OIML, CE. We can send you the certificated documents and test reports.
4. What areas can your products be applied to?
Our products are rich in variety and can be used in petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry.
5. Are you a trading company or a factory?
We are a group company specialized in the R&D and manufacture of weighing equipment for 12 years. Our factory is located in Ningbo, China. You can come to visit us. Looking forward to meeting you!
