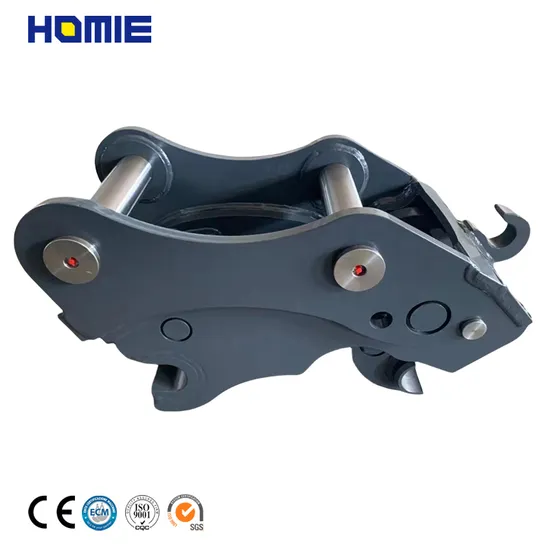

Hot Sale Excavator Quick Hitch Hydraulic Quick Coupler for 12-18ton Excavator

Product Description

Product Description

Excavator quick coupler, also named as quick hitch coupler, quick hitch, bucket pin grabber can quickly connect various attachments (bucket, hydraulic breaker, hydraulic plate compactor, log grapple, ripper, etc.) on excavators, which can expand the scope of use of excavators, and save time and improve work efficiency.
As one of the leading excavator quick coupler manufacturers in China, HOMIE has a full range of quick hitch couplers for all kinds of brands and models of excavators.
Product Parameters
Please check the following scrap grapple specifications: Quick Hitch:

Model	Size(A*B*C)	Weight	Axis Diameter Range	Arm Width	Center Distance	Control	Excavator
Unit	Mm	Kg	Mm	Mm	Mm		Ton
HMmini	560*320*350	50	30-40	90-145	Cusomized	Hydraulic	MINI
HM02/04	690*370*530	80	45-50	145-175	≤265	Hydraulic	5-6
			45-55	180-200	265-305		6-8
HM06	1000*500*630	200	60-65	220-270	≤407	Hydraulic	12-18
HM08	1150*600*700	350	70-80	305-335	<500	Hydraulic	18-20
HM09(08S)	1200*750*700	400	80-90	350	500	Hydraulic	20-30
HM10	1250*700*850	550	90	380-410	Customized	Hydraulic	30-40
HM14/17	1400*750*800	750	430	430	Customized	Hydraulic	40-50
			450-470	450-470
HMMini	560*320*350	50	30-40	90-145	Customized	Mechanical	Mini
HM02	690*370*530	80	45-50	145-175	≤265	Mechanical	5-6
HM04	690*370*530	80	45-55	180-200	265-305	Mechanical	6-8
HM06	1000*500*630	200	60-65	220-270	≤407	Mechanical	12-18
HM08	1150*600*700	350	70-80	305-335	<500	Mechanical	18-20

Tilting Quick Coupler:

Model	Size(A*B*C)	Weight	Axis Diameter Range	Arm Width	Center Distance	Control	Excavator
Unit	Mm	Kg	Mm	Mm	Mm		Ton
HMMini	495*530*	157	30-40	90-145	Customized	Hydraulic	Mini
HM02/04	597*591*230	190	45-55	145-175	≤265	Hydraulic	6-8
HM06	763*762*303	395	60-65	220-270	≤407	Hydraulic	12-18

Main Features
Double Cylinder Tilt Quick Hitch&Customized Powertilt HOMIE tilting quick hitch makes your excavator attachments have instant tilt capacity,which can be completely tilted 90 degrees in two directions.Suitable for excavators from 2ton to 25ton.
*Tilt 180 degree.
*Double safety locking.
*Safe design,no exposed cylinder.
*Extra hitch strength steel.
*Variable pin center design.We can also customize the Powertilt quick hitch according to your actual requirements.* Compact design - improving machine performance.* Integral overload protection,fully guarded hoses* Automatic locking,up to 180 degrees of tilt.
Exhibition:
Company Profile
Yantai Hemei Hydraulic Machinery Equipment Co., Ltd is one of leading manufacturers for excavator attachments in China. All products' quality are strictly under control from processing to delivery. By continuous innovation and improvement, the company has got ISO 9001, CE certifications and technical patents successively. Our products have been sold to widely domestic and oversea customers and long term partnerships have been developed.
Focus On Product
Certifications
More Products:
HOMIE develop and produce different types of excavator attachments, provide one-stop purchasing service. Our main products are log / wood grapple, rock / stone grapple, steel grapple, quick coupler, hydraulic plate compactor, rotary screening bucket, crusher bucket, heavy duty shear, demolition shear, hydraulic pulverizer, orange peel grapple, car dismantling shear, sleeper changer...
FAQ:
1.What color can you produce ?
Yellow.If you need special, please advise.
2.How about the delivery time ?
Within 3-7 working days after receiving advance payment.
3.What's the MOQ and payment ?
MOQ is 1 set.
T/T, L/C, Credit card, Money Gram, west union is accepted. and other terms can also be negotiated.
4.Are you a manufacture?
Yes, our factory was established in 2018.
5.Can you produce according to customers' design?
Sure,we are professional manufacturer,OEM is available.
6.Which country have you exported?
America,Brazil,Mexico,Canada, Australia, Peru,Spain,Egypt,Pakistan, South Africa,etc.
7.How to buy my wanted products quickly?
Show me the model or the weight of your excavator, and we can give you best solution.
If you want to know the ocean freight,please also suggest your nearest SEAPORT.
8.How about the package?
Plywood case, or as customers' demands.
9.How about your service?
7Days *24Hours hot line and email service.
Well-Retrained and experience staffs will answer all your questions within 12 hours.
