Wl-800L Bench-Top Semi Automatic Plastic Nylon Cable Straps Zip Lock Machine Nylon Cable Tie Tying Machine

Wl-800L Bench-Top Semi Automatic Plastic Nylon Cable Straps Zip Lock Machine Nylon Cable Tie Tying Machine

US$3,999.00-7,999.00 1 set (MOQ)

Basic Info.

Model NO.
WL-800L
Certification
CE
Cable Tie Length
60mm,80mm,100mm,120mm (160mm Can Be Customized)
Wire Harness Size
1-30mm
Power
AC220V 50Hz/110V 60Hz
Weigth
230 Kg
Transport Package
Wooden Case
Specification
120*55*78cm
Trademark
Crown
Origin
China, Jiangsu
HS Code
8422400000
Production Capacity
1200-1800PCS/Hour

Product Description

WL-800L Bench-Top Semi Automatic Plastic Nylon Cable straps Zip lock machine Nylon Cable Tie Tying Machine
Product description:
Model WL-800L
Applicable cable tie length 60mm,80mm,100mm,120mm (160mm can be customized)
Applicable cable tie width 3-5mm
Max strapping force 15N
Max. conduit diameter 11mm
Productivity 1200-1800pcs/hour
Power 0.75kw
Air pressure 0.6 Mpa
Noise level <70dBA
Electrical connection AC 220/110V/50/60HZ 750W
Starting System Pedal
Weight 125kg
Dimensions 1200*550*780mm

Features:

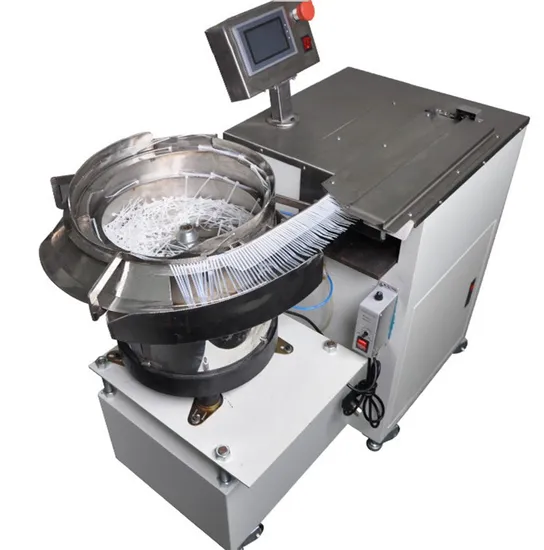

This nylon cable tying machine adopts vibration plate to feed the nylon cable ties to work position continuously. The operator only need to put the wire harness to correct position and then press down the foot switch, then the machine will finish all tying steps automatically. This nylon cable tying machine adopts vibration plate to feed the nylon cable ties to work position continuously. The operator only need to put the wire harness to correct position and then press down the foot switch, then the machine will finish all tying steps automatically.
The automatic cable tie tying machine is widely used in automotive wire harness, appliance wire harness and other industries.

PLC touch screen control, clear and intuitive, easy to operate.
High degree of automation, good consistency, fast speed.
The tightness and tying length can be set through program, and the operator only needs to put the wire harness around the binding mouth, and the machine automatically senses and ties wires.

Product show:
Machine processing samples:
Related products:
Company information:
Certificate:
Contact:
Pls contact Suzhou Crown Kitty for price inquiry or any other questions/doubt.
