Lotion High Shear Emulsifying Mixer Jacket Steam Heating Mixing Tank

Product Description

Detailed Photos

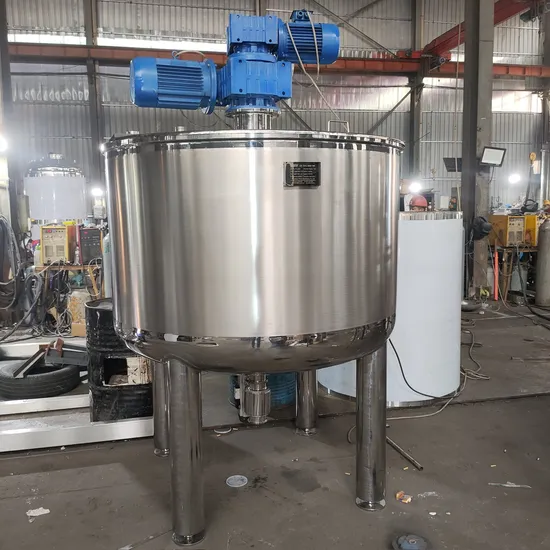

Product Description Multiple Agitator Mixing Tank
Multiple agitator mixing tank is used to to dissolve one or more materials (water-soluble solid phase, liquid phase or colloidal substance, etc.) in another liquid phase, and make them hydrate into relatively stable emulsions.
Application scope
1. Food and beverage: dairy products, ice cream, butter ,chocolate, soymilk, juice, jam ,paste etc;
2. Cosmetics industry: detergent, conditioner, shampoo, skin lotion, perfume;
3. Pharmaceutical industry: injections, medicine emulsion, medicine cream, health care products, medicine slurry preparation;
4.Chemical industry: lubricating oil, grease, heavy oil emulsification, diesel emulsification, disinfectant, insecticide,photosensitive latex, rubber slurry, resin paste, thickener, essence, silicon material, carbon black, Magnesium Oxide, titanium dioxide, anti sticking agent, release agent, defoaming agent, sealant, etc.
Mixing Tank Structure Characteristic
1) Volume we can produce from 20L ---10000L.
2) Material we can use SS304 and SS316L. etc.
3) it can used in single layer or double jacket layers.
4) Jacket can be used different type : single full jacket ,limpet coil jacket and dimple type jacket.
5) Jacket can be used for heating and cooling.
6) heating medium can be steam ,hot water ,thermal oil or electrical heater elements.
7) cooling medium can be chiller or tap water etc.
8) Tank can be equipped with manhole ,CIP spray ball ,vent filter level sensor ,temperature sensor ,pressure sensor ,load cell ,PH sensor ,PO2 sensor ,safety valve,sampling valve etc.
9) Tank can be CIP/SIP online
10) inside shell mirror polish Ra<0.4um ,outside shell polish Ra<0.8um
11)control panel :PLC /HMI automatic control or common button control . Product Parameters Technical description

Components Item	Function and usage
CIP spray ball	Wash &clean tank inside surface and devices automatic ,which should connect to the CIP machine station
Vent filter	Filter air to prevent the bacteria into the tank ,also can release the tank inside pressure.
Temperature sensor (gauge)-optional	Indicate inside tank temperature and PID temperature control with the necessary valve and fittings
Pressure sensor (gauge) optional	Indicate the inside tank pressure
PH sensor optional	Indicate the product PH data
PO2 sensor optional	Indicate the product Oxygen content
Level sensor (gauge) optional	Indicate the inside tank product level height ,there are have different models :(static) pressure type ,ultrasonic type ,radar type ,glass tube type ,plate sight glass type .
Load cell optional	Indicate the product weight
VFD ( inverter ) optional	Control and adjust agitator speed
Safety valve optional	Release inside tank pressure to protect the tank safety
Flow meter optional	Indicate the solution inlet and outlet volume
Sight light	Indicate inside tank bright for watching easily
Manhole (handhole )	Charge solid product into tank ,also can be used for maintenance inside tank components.
Sampling valve optional	Take inside tank products sample for offline checking

Model Item	PTE-50	PTE-100	PTE-200	PTE-500	PTE-1000
Tank work volume:L	50	100	200	500	1000
Motor power for high shear emulsifying:Kw	1.1	1.5	2.2	5.5	7.5
Agitator speed for high shear emulsifying :RPM	0-1440 or 0-2900
Motor power propeller type agitator g:Kw	0.37	0.55	0.55	0.75	1.1
Agitator speed for propeller type agitator :RPM	0-150
Motor power anchor type agitator g:Kw	0.55	0.75	0.75	1.1	2.2
Agitator speed for anchor type agitator : RPM	0-45
Inside shell pressure MPa	-0.1/0.3 (can be done as client's URS)
Jacket pressure MPa	0.15 (can be done as client's URS)
If heating by electrical element in the jacket ,the electrical heater power KW	4	8	16	30	50
Jacket heating medium for electrical element	electrical heating water or thermal oil
Jacket type	Single full jacket

Remark :above model just for reference ,we can do according to client's URS Company Profile
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
