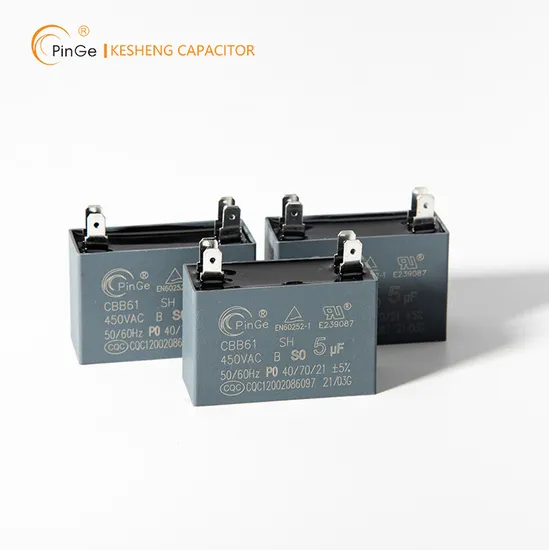

Ks Pinge Cbb61 Polypropylene Capacitor for Air Conditioner Parts
Basic Info.
Model NO.
CBB61 capacitor
Packaging Type
Through Hole
Capacitance
1-30UF
Manufacturing Material
Polypropylene
Usage
AC Motor Starting and Run
Model
Cbb61 Terminal Type Capacitor
Rated Voltage
250V.AC~450V.AC
Capacitance Range
1UF~30UF
Certificate
UL,TUV, Bis, CQC,Bis
Operation Class
Classa:30,000hrs, Classb:10,000hrs, Classc:3000hr
Tolerance
±5%
Protection Class
S0,S3
Terminal
187#(1+1/2+2), 250#(1+1/2+2).
Operating Temp.
-25~70ºC,-40~70ºC,-40~85ºC,
Shape
Square Box
Supplier Type
Original Manufacturer
Transport Package
100PCS/Bag
Specification
EN60252-1: 2001 GB/T3667.1ul
Trademark
PinGe
Origin
Foshan, China
HS Code
85322590
Production Capacity
50000PCS/Day
Packaging & Delivery
Package Size
42.00cm * 35.00cm * 35.00cm
Package Gross Weight
30.000kg
Product Description
Features and usesThe capacitor has advantages of low dissipation factor,,high insulation resistance,good self-healing character,anti-striking current,strong over-carrier capacity and steady electric performance,etc.In generally,it uses rectangular flame retardant shell and epoxy resin to seal.It is applied in electric fan, exhaust fan electric pump,and electric sewing machine,etc.It is helpful for motor's starting and running.
