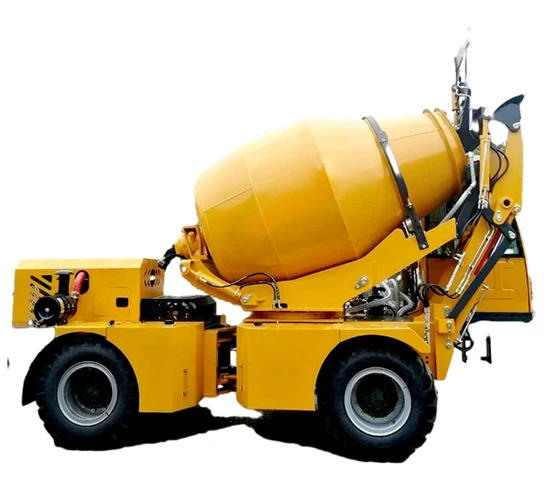

Luzun Self Loading Mobile Mixer Truck 3.5cubic Cement Truck Jbc5500 for Sale

Product Description

LUZUN Self Loading Mobile Mixer Truck 3.5cubic Cement Truck JBC5500 For Sale Product Description
Loading: Automatic loading and loading
Application: Road construction, bridge construction, tunnel construction, infrastructure construction, etc.
Manpower: 1-2 people can operate
Production capacity: 15 cubic meters/hour
* DIESEL ENGINE
Model: YCD4J22G
Total displacement, no Cylinders: 4330cc-4 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 85Kw(116Hp)
Max. torque: 390Nm@2800rpm
* ELECTRIC SYSTEM
Alternator:28V--1500Wa (53.5A)
Battery: 2×12V--100AH (453A)
Road light system, rear working lights.
* STEERING
Articulated Steering by two cylinders move alternately.
Electro - hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
* 4X4 FOUR-WHEEL DRIVE
hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
* AXLES AND WHEELS
Front wheel is steering with planetary reduction gears on the Wheel reduction Axle with flanged gearbox.
Rear axle is oscillating(± 28°)with planetary reduction gears.
Tires:... 16-70-20,Max. L: 5150kg , 450kPa Product Parameters

Product name	Luzun 3.5 cubic meter self-loading mixer truck
Diesel engine	Model: YCD4J22G
	Total displacement: 4330cc Number of cylinders: 4 cylinders in-line
	Injection: in-line, instrument control
	Cooling: water cooling dry air filter
	Maximum power: 85KW (116HP)
	Maximum torque: 390Nm@2800rpm
Axles and tires	Front axle, steering: axle
	Planetary reduction gear on the axle, flange connection gearbox
	Rear axle (+-28°)
	Tire: 15.5/65-18
	Maximum load: 5150kg
	350kPa
Electrical system	Generator: 28v-1500Wa (53.5A)
	Battery: 2x12V-60AH (272A)
	Road lighting system
Steering	2-wheel steering, assisted steering by double displacement load sensing power steering system on 2 steering wheels
4*4 four-wheel drive	Hydraulic torque converter gearbox, open hydraulic gear oil pump, reverse gear control device
	2 forward gears 2 reverse gears
	1st gear: 0-7 km/h 2nd gear: 7-20 m/h
Water supply system	Self-priming 24V large capacity water pump with quick suction function
	Maximum flow rate 90 l/min
	Maximum capacity 2X285 l
	High-pressure water pump washes the vehicle
	Screen displays water intake and drum water intake
Braking system	Internal hub service brake and emergency brake work on 4 wheels
	Small servo pump on independent dual circuit activated
	Negative pressure parking brake
	Internal hub on front axle
Maintenance filling volume	Fuel tank: 190 l
	Total hydraulic system capacity: 190 l
	Engine oil: 16 l
Weight	Operating weight: 85 00 kg
	Maximum total weight: 16900 kg
	Maximum load: 7600 kg
Mixing and unloading	Drum geometric capacity: 5445 liters
	Drum rotation speed: 16 rpm
	Concrete output: 3.5 cubic meters/tank
Equipment hydraulic system	Gear pump: Permco
	Maximum flow: 63/50 liters // 20.3 liters/minute (triple pump)
	Maximum pressure: 42 MPa
Loading	Loading arm equipped with automatic weighing sensor
	Capacity: 600 liters
	Number of loads required for each full load: 5
Operation cab	Heating/cooling system
	Humanized seat
