Waterjet Looms Winder Machine Horizontal Cloth Fabric Roll Winding Machine for Weaving

Waterjet Looms Winder Machine Horizontal Cloth Fabric Roll Winding Machine for Weaving

US$10.00 1 Piece (MOQ)

Basic Info.

Processing Type
Mechanical Process
Match Machine
Weaving Equipment
Material
Metal
Processing Level
Super Precision Finishing
Mechanical Process
CNC
Processing Trade
Processing with Imort Material
Certification
CE, ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
After-Sale Service
Transport Package
Standard Shipping Package
Specification
depends on your product
Trademark
unitex
Origin
China
Production Capacity
100000PCS/Year

Product Description

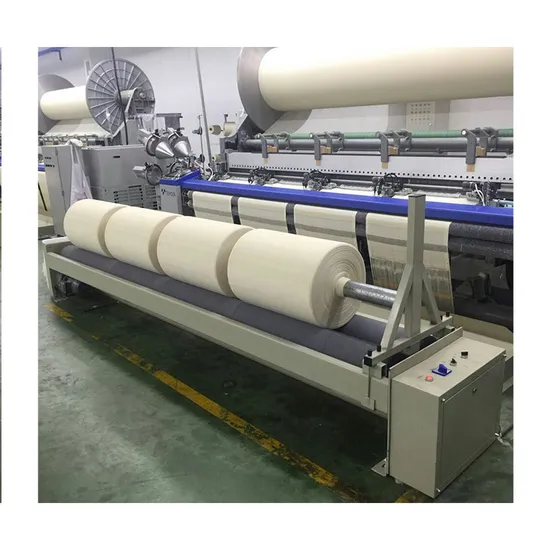

Horizontal Cloth Winder can be widely used to connect air jet, rapier, projectile, water
jet and other manufacturers of weaving machines.It can be used for rolling common cotton and chemical fiber fabric, as well as industrial cloth such as glass fiber and geotextile.
1.Less fabric waste and increase efficiency
2.Fast and easily handled, one operator can take care of multiple machines
3.High degree of automation, can automatically track the start, stop and speed changes of the loom, to set the tension for smooth winding.
4.Variable working width is possible
Main Technical Features Technical Specifications
* Speed:Synchronized with Weaving Machines
* Fabric Width:1.2-4.5meters
* Max winding diameter:1500mm (standard:1200mm)
* Edge-alignment Error:≤5mm
* Dimension(L*W*H):As per customer's fabric width
* Electric Specs:3Phase-380V; 50HZ(can be adjusted to suit for difffferent countries.)
* Frequency converter control electrical mode
* Automatic winding, stop, manual reversal and other operation functions machine structure
* The diameter of the two winding rollers is Φ217mm, one roller is covered with anti-skid rubber, the other roller is galvanized or sprayed with plastic.
* Non-slip foot pedal * Option - Inspection tablewith LED * Option - Man-machine interface operation mode * Option - Accurate length measuring giving accuracy of ± 0.01% * Option - Semi-automatic doffing device(pneumatic roll ejection device)
* Option - Manual doffing device(Manual roll ejection device) * Option - Automatic fabric selvedge shifter for thick selvedge.
* Option - Electric press roller lifting device designed for tighter cloth coiling
Horizontal Cloth Fabric Roll Winding machine for Weaving
Place of Origin
Jiangsu, China
Warranty
The core components are guaranteed for 1 year
Applicable Industries
Weaving Factory, Textile Factory
Usage
Weaving Loom Machine
Power
0.25kw,50 Hz
Voltage
According to actual condition
Max winding diameter
1500mm (standard:1200mm)
Speed
Synchronized with Weaving Machines
Item
Fabric Roll Winder
