5 Axis Axes CNC Bridge Saw Cutter for Cutting and Milling Stone Granite Marble Quartz Quartzite Slab Kitchen Countertop Tile Sink Cutting Machine

5 Axis Axes CNC Bridge Saw Cutter for Cutting and Milling Stone Granite Marble Quartz Quartzite Slab Kitchen Countertop Tile Sink Cutting Machine

US$45,800.00-65,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
AKNC-5A01
Type
CNC Cutting Machine
Usage
Granite, Marble
Application
Machinery & Hardware, Construction, Stone Industry
Source Voltage
220V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
CNC System
Hcfa
3D Software
Available
Suction Cup
Available
Installtion
Available
Training
Available
Intelligent Software
Available
Measuring Instrument
Available
Transport Package
by Container
Specification
6000*4300*3400mm
Trademark
AOKE
Origin
China
HS Code
8464109000
Production Capacity
100 Sets/Year

Product Description

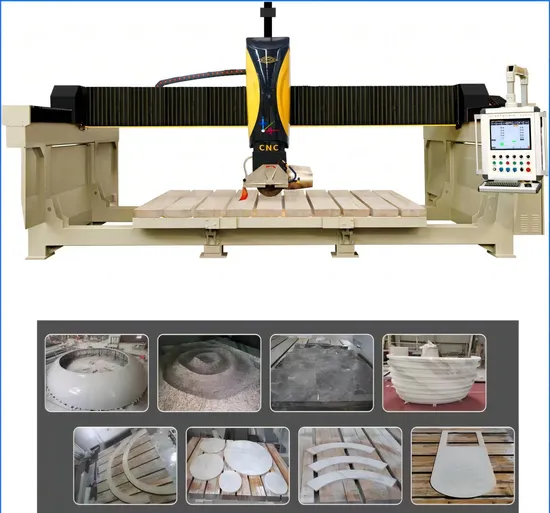

5 Axis CNC Bridge Saw Machine CNC Stone Cutting Machine
For Sawing & Cutting Stone Marble Granite Dekton Sintered Stone countertop Product Description
This stone cutting machine is a mono-bloc 5-axis CNC machine. Besides straight cutting, this stone machine is also able to make polygon cutting, straight/arc stone line cutting, curve cutting, vanity top cutting, internal/external round shape cutting and chamfering.
Featuring as smaller installation space, higher precision and efficiency, more simple operation, this CNC stone machine is your best choice for processing stone.

Product Parameters
X-axis route 3500mm Cutting thickness 0-180mm
Y-axis route 2300mm Worktable size 3200*2000mm
Z-axis route 450mm Worktable tilting 0-85°
A-axis route 0-90° Main motor power 18.5KW
C-axis route ±360° Total power 31KW
Saw blade diameter 350-600mm Water Consumption 4m³/h
Saw blade speed 0-6000r/min Gross weight 5600KG
Machine dimension(L*W*H) 6000*4300*3400mm

Detailed Photos
INVT Servo Drive Motor
Transmission: Linear guide + Taiwan Hiwin ball screw

Lubrication method: X/Y/Z axis is automatically lubricated by electric oil pump, A/C axis is lubricated by grease
Computer operation,simple and clear interface

Use HCFA system
Cutting precision, USB port for transferring files

Self-developed/18.5KW high-speed spindle/ water-cooled spindle

Red laser reticule apparatus
Hitachi inverter
With camera function, AI cutter presetting

Hydraulic Turnover Table
Products of special shapes.
Packaging & Shipping
This stone machine can be loaded into a 20'GP Container.

Installation Instructions
1. There are guide videoes showing how to use this stone machine, and English instruction manual sent to you with machine.
If there is still have any question, we will provide free professional online training for you until you can run the machine well.
2. You can come to our factory to learn the installation and operation.
3. We can send enginner to help you install and teach you use the stone machine.


After Sales Service
Our CNC stone machines have remote troubleshooting function, our enginner can solve most problems by remote control, otherwise we will give video guide.
