Cx2121 Diamond Multi-Wire Saw Cutting Machine for Magnets Optical Glass Processing Tool
| US$48,000.00-200,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CX2121
Condition
New
Certification
CE, ISO 9001: 2015
Automation
Automatic
Suitable for
Alloy, Sapphire, Quartz Crystal, Silicon, Magnets
Maximum Worksize
204X210X210mm
Maximum Running Speed
1200m/Min
Workbench Quantity
2
Roller out Diameter
160X160X210mm
Roller Quantity
5
Wire Diameter
0.20-0.37mm
Wire Spool Storage
20km
Travel of Worktable Lifting
240mm
Travel of Worktable Translation
100mm
Cutting Method
Vetically Upward Movement
Cutting Fluid
Water-Based Cutting Fluid or Cutting Oil
Fluid Storage
800L
Dimension
2200X1900X2400mm
Weight
3000kg
Test Cut
Provide Test Cut Service
Transport Package
Wooden Case
Trademark
LiKai
Origin
China
HS Code
8464109000
Production Capacity
350sets/Year
Product Description

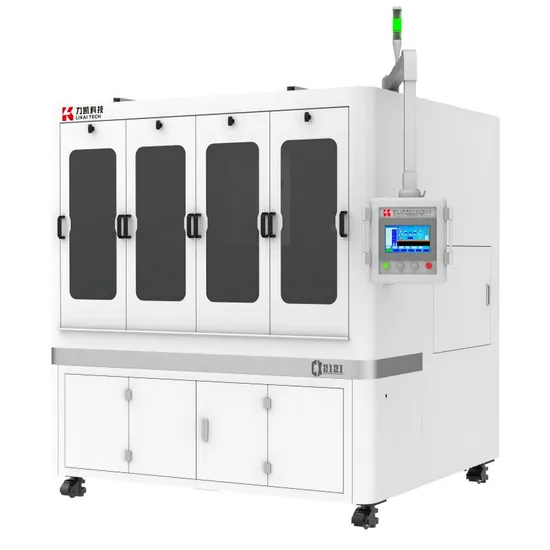

Product DescriptionCX2121 Multi-wire Saw
CX2121 Multi-wire Saw is designed with double-workbench to meet the demand for batch processing of super-hard materials such as Sapphire, Quartz Crystal, Optical Glass, Special Ceramics, Metal Composite/Alloys into straight sheets.Five wire guide rollers design is mainly used to cut straight sheets of 5mm-60mm thickness.
Product Features
>Double Workstation
The machine adopts double-station design and is able to cut two plates materials at the same time.
>Flexible Roller System
Achieve the cutting of products within 5-60mm thickness with the flexible wire winding for 3 rollers and five rollers.
>Easy Operation
Roller cutting system, workbench, tension system, take-up and pay-off and wire winding system are set in a plane for easy operation.
>Optimized Pulley Design
6 pulleys design can reduce wire breakage rate and achieve convenient wire winding.
>Flexible Cutting
The left and right slide table on the workbench can be independently moved back and forth, and the left and right sides can cut products of different thicknesses.
>Convenient Insttallation and Removal
The rollers are fastened with screws and equipped with special electric wrench for convenient disassembling and installation.
>Swing Cutting Function
Adding swing function to workbench to achieve the opening square cutting of semiconductor silicon carbide.
>Wire break memory system.
Product Parameters
| Detail | Parameter |
| Model | CX2121 |
| Maximum work size | 204x210x210mm |
| Slice thickness | 5-60mm(wire winding number:≤40) |
| Workbench quantity | 2 |
| Roller out diameter *Workable width | (φ160-185mm)x210x5 |
| Wire diameter | φ0.20-φ0.37 |
| Wire spool storage | 20km(φ0.25mm) |
| Maximum running speed | 1200m/min |
| Travel of worktable lifting | 240mm |
| Travel of worktable translation | 100mm |
| Worktable swing angel | 0 |
| Cutting method | Vertically upward movement |
| Cutting feed speed | 0.1~99.9mm/min |
| Cutting fluid | Water-based cutting fluid or cutting oil |
| Fluid storage | 800L |
| Fluid flow rate | 200L/min |
| Power supply | 380V±10% 50HZ |
| Power | 22Kw |
| Size L*W*H | 2200x1900x2400mm |
| Weight | 3000kg |
