Hualong Ceramic Tile Marble Cutting Machine Stone Bridge Cutting Machine

Hualong Ceramic Tile Marble Cutting Machine Stone Bridge Cutting Machine

US$14,000.00-17,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HLSQ-700
Customized
Customized
Type
Stone Cutting Machine
Condition
New
Working Platform Tilting Degree
0-85
Cutting Stone Type
Marble Granite
Control System
PLC
Worktable Rotation
0-90
Key Selling Points
Easy to Operate
Blade Tilt
45
Weight
6100kg
Dimension(L*W*H)
6000X5000X2800mm
Warranty of Core Components
1 Year
After-Sales Service Provided
Online Support, Free Spare Parts
Main Motor Power
18.5 Kw
Marketing Type
Hot Product 2020
Use
Both Granite and Marble
Transport Package
1) Covered by Plastic Film Wholely. 2) Packed in P
Trademark
Hualong
Origin
Fujian, China
Production Capacity
30 Set/Sets Per Month, High Speed

Packaging & Delivery

Package Size
600.00cm * 500.00cm * 280.00cm
Package Gross Weight
6100.000kg

Product Description

Product Application

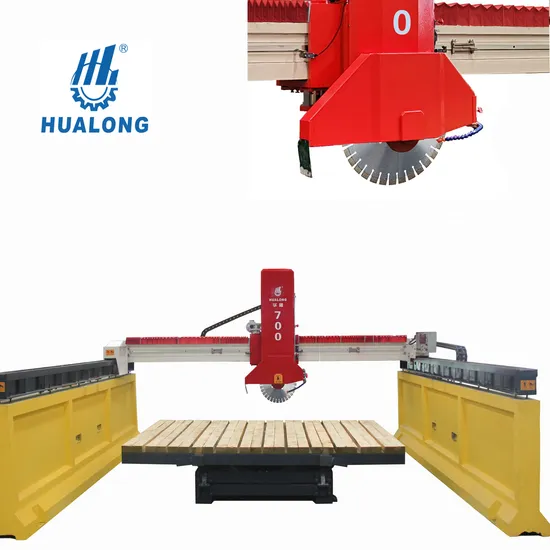

Infrared Automatic Bridge Stone Cutting Machine HSQ-700 is mainly used for granite, marble cutting, with many advantages such as rational construction, steady movement, high accuracy, convenient installation and maintenance. Compared with similar products, the advantages are obvious. It is a very important and common equipment in stone processing equipment.

TECHNICAL DATA FOR HLSQ-700

Configuration
Diameter of blade
mm
Φ400 - 700
Power of main motor
kw
18.5
Working platform dimensions
cm
320 x 200
Main Performance Parameters
Max. processing dimensions
mm
3200 x 3200 x 220
Working platform tilting degree

0-85
Working platform rotating degree

90-360
Water consumption
m3/h
4

Measurement
Gross weight
kg
6100
Dimension (L x W x H)
cm
600 x 500 x 280

Main Features 1) Controlled by PLC, operated expediently, accurately and stably.
2) Cutting head can tilt 45° for mitre cuts (Optional function).
3) Working table can tilt at 85 degrees for easy loading slabs and rotates 360 degree for ideal cutting. A full 360° rotating table enables precision cutting of material edges.
4) Laser device is adopted for slab positioning accurately.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
