Dongfeng/HOWO Electric Cargo Used Car Garbage/Trash Refuse Truck Kitchen Vacuum Cleaner Compactor Truck Compressed Garbage Heavy Duty Dump Truck for Sale

Product Description

Production Presentation

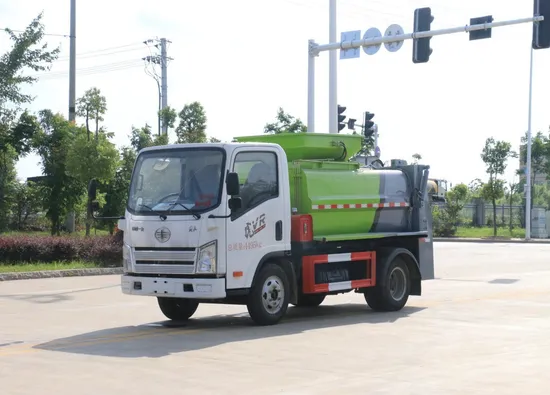

Kitchen (swill) garbage truck: also known as kitchen waste garbage truck, kitchen waste truck or swill truck, is a kind of garbage truck, mainly used to collect and transport domestic waste, food waste (swill) and urban sludge special vehicles. Can be equipped with different specifications of the standard garbage can, widely used in hotels, restaurants, canteens, schools and other units of the kitchen swill treatment. It has the characteristics of high degree of automation of loading and unloading garbage, reliable work, good sealing, large loading capacity, easy operation, closed operation process, no sewage leakage and odor distribution, and good environmental protection.
Product Parameters

Items	Parameters	Notes
Overall dimension Length × width × height (mm)	5310X2000X2400
Curb weight(kg)	3400
Rated load weight (kg)	2580,2380
Maximum total mass (kg)	965
Rated member	2 People
Chassis type	CA1041P40K50L1BE6A84
Engine type	Quan Chai Q23-95E60	Weichai 95 horsepower
Engine power (kw)	95
Wheelbase (mm)	2800
Tyre	6.50R16
Speed changing box	Wanliyang 5
Effective volume of tank (m3)	3
Operating mode	Manual
Discharging time	≤30s

Product Features (1) The structural design of the curved box ensures the optimal performance of the product, and the design of the side surface of the box improves the overall frame steel while increasing the beauty of the product.
(2) Curved box, high quality steel thickness 4mm, effective volume of 3 square.
(3) Hefei Anhui oil pump, Wessenboler multi-way valve, Wessenboler hydraulic cylinder, to ensure the stability of the whole hydraulic system.
(4) The right side of the body is equipped with a hydraulic bucket lifting mechanism, which can hang the national standard 120/240 liter trash can, driven by the oil cylinder through the pull rod device to achieve the mechanism dumping and reset, and the elevator is combined with the feed port to prevent misoperation.
(5) The loading capacity is strong and can achieve the initial separation of kitchen waste and oil and water in the box, and is equipped with a large capacity sewage tank.
(6) Back cover hydraulic opening and locking device, latch type cylinder lock. Special reinforced silicone rubber strip seal, good sealing, can ensure that dripping, eliminate secondary pollution.
Matters Need Attention
1. The car chassis running running-in mileage please refer to the supporting car chassis instruction manual for running-in, and carry out maintenance after running-in, such as cleaning the air filter element, replacing the engine oil, etc. During running-in, pay attention to check whether each part has abnormal vibration, noise and rain leakage phenomenon, whether the fan transmission belt and hydraulic pump transmission belt slip, whether the electronic control switch and instrument indication is normal.
2. Before using the vehicle, it is necessary to check whether the vehicle has oil leakage, water leakage, air leakage and other phenomena, eliminate it if necessary, check the engine oil level, the cooling water tank water level, and fill the oil and water if necessary.
Vehicle operation:
1. Avoid irrelevant people near the vehicle, especially the vehicle elevator.
2. Observe the dirty window, such as garbage overflows the window must be careful to avoid garbage overflow.
3. During the unloading process, ensure the safety of the surrounding area when opening the back cover and operate with caution.
4. Before the back cover is not dropped and locked, it shall not enter the normal driving. Detailed Photos
Product standard configuration
The strength of the company Hubei Kaili Special Vehicle Co., Ltd. is a wholly-owned subsidiary of Kaili Automobile Group, with CNC machining center, welding robot, fiber laser cutting machine, CNC plasma cutting machine and other advanced production equipment, is a high-end intelligent sanitation, emergency equipment special vehicle research and development production, system integration and operation services in one of the manufacturing enterprises.

Manufacturing technique
Honors and Qualifications
Buyer group photos FAQ 1. Q: Are you a factory or a trading company?
A: We are a leading manufacturer of emergency rescue vehicles, special box vehicles and sanitation vehicles. Welcome to Suizhou City, China's special automobile production base.
2. Q: Where is your factory located?
A: We are located in Suizhou City, Hubei Province, China
3. Q: How do I get there?
A: Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, our company will arrange a special car to pick you up.
4. Can you make it exactly according to my requirements?
Yes. We have a professional research and development team that can produce products according to your needs.
5. Q: Do you provide the certification we need?
A: We can provide all kinds of certificates. Such as IOS, 3C and so on.
6. What are your terms of payment?
A: Telegraphic transfer is preferable.
7. Q: Do you arrange the shipment of vehicles?
A: Yes, we can arrange shipment according to the terms of trade.
8. Q: How can you help me?
A: We offer a tracking service and a one-year free warranty on all products. At the same time we provide free training and technical support to guide you to repair your products. If required, we will also air the original spare parts.
9. Q: What about the packing?
A: All the packing is up to export standard.
10. Q: How long is the delivery time?
A: According to the arrangement of the workshop, the order is usually 15 to 20 working days.
For other questions, we will get back to you as soon as possible after receiving your inquiry!
