Big Capacity 1000L Timing Temperature Control Forced Convection Hot Air Drying Oven for Industrial
| US$1,500.00-12,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DGF-5AB
Application
Industry, School, Hospital, Lab
Customized
Customized
Certification
CE, ISO
Structure
Vertical
Material
Stainless Steel
Operational Method
Continuous
Type
Air Flow Drier
Model
Dgf-5ab
Name of Commodity
Hot Air Drying Oven
Volume
1000L
Power
6600W
Temp. Range
Rt+10~250 Degrees Celsius
Temp. Resolution
0.1 Degrees Celsius
Temp. Fluctuation
+-1 Degrees Celsius
Temp. Uniformity
3%
Temperature Display
LCD
Shelves
11PCS
Chamber Material
Stainless Steel
Power Supply
380V/50Hz
Timing Range
1-9999min
Inner Dimensions
1000X1000X1000mm
Overall Dimensions
1040X1200X1400mm
Transport Package
Plywood Box
Specification
1000x1000x1000mm
Trademark
WollenLab
Origin
China
HS Code
8419399090
Production Capacity
500sets/Month
Product Description

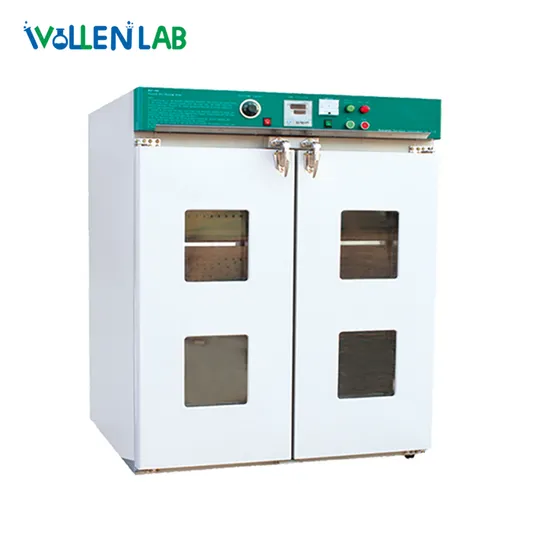

Big Capacity 1000L Timing Temperature Control Forced Convection Hot Air Drying Oven For IndustrialApplications:
Large capacity industrial high precision drying oven to meet the requirements of military industry.
Product Characteristics:
1. PID or program temperature control controller with over-temperature alarm system.
2. Double-door structure is more convenient to use.
3. Forced air system with Low-noise fan, centrifugal cycle method, high temperature uniformity.
Technical Parameters:
| Model | DGF-4AB | DGF-5AB | DGF-6AB | DGF-7AB | DGF-8AB | ||||||
| Cycle Mode | Fan-forced circulation | ||||||||||
Function | Temp. Range | RT+10-250ºC | RT+10-300ºC | ||||||||
| Temp. Resolution | 0.1ºC | ||||||||||
| Temp. Fluctuation | ±1ºC | ||||||||||
| Temp. Uniformity | ±1% | ||||||||||
Structure | Inner Chamber | Stainless steel inner | |||||||||
| Outer Shell | Galvanized sheet electrostatic spraying exterior | ||||||||||
| Insulation Layer | High quality rock wool board | ||||||||||
| Heater | Stainless steel heating tube | ||||||||||
| Power | 6000W | 6600W | 9000W | 12000W | 15000W | ||||||
| Exhaust Hole | On top or side | ||||||||||
Controller | Temp. Control Mode | PID intelligent control or Multi-segment programmable control (optional) | |||||||||
| Temp. Setting Mode | Touch button setting | ||||||||||
| Temp. Display Mode | LED digital display | ||||||||||
| Timer | 0-9999min (with timing wait function) | ||||||||||
| Operation Function | Fixed temperature operation, timing function, auto stop | ||||||||||
| Additional Function | Temperature deviation correction, menu locked, power-off memory | ||||||||||
| Temp. Sensor | PT100 | ||||||||||
| Safety Device | One key to start overheat power off | ||||||||||
Specification | Inner Chamber Size (W*L*H) mm | 800x800x1000 | 1000x1000x1000 | 1000x1000x1300 | 1200x1200x1300 | 1600x1200x1600 | |||||
| Exterior Size (W*L*H) mm | 940x1000x1400 | 1040x1200x1400 | 1230x1200x1670 | 1330x1400x1670 | 1750x1400x2070 | ||||||
| Packing size (W*L*H) mm | 1040x1110x1520 | 1260x1290x1520 | 1350x1300x1890 | 1550x1500x1890 | 1950x1500x2290 | ||||||
| Volume | 640L | 1000L | 1300L | 1870L | 3070L | ||||||
| Shelves | 11pcs | 15pcs | 18pcs | ||||||||
| Load Per Rack | 30kg | ||||||||||
| Shelf Space | 70mm | ||||||||||
| Voltage 50/60Hz | 380V | ||||||||||
| NW | 200kg | 260kg | 350kg | 480kg | 800kg | ||||||
| Accessory | Shelf | 2pcs | |||||||||
| Optional Accessories | Shelf, RS485 interface, printer, remote control | ||||||||||
304 stainless steel inner
304 stainless steel shell
304 stainless steel shelves Double Doors Structure for More Convenient Operation:
front door+back door Multilayer Shelves
