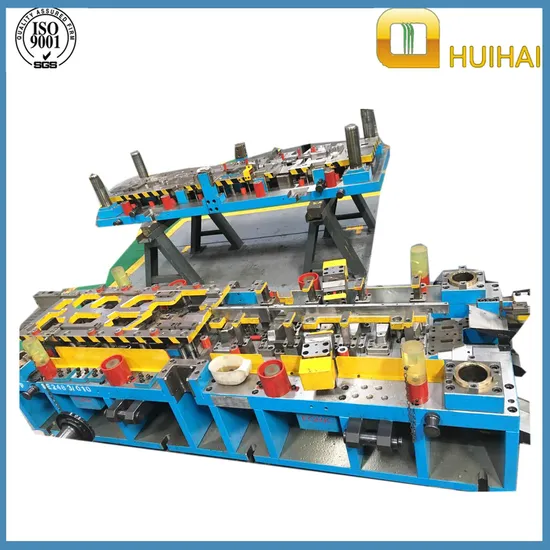

High Quality Precision Stamping Die/Tooling/Mould for Auto Parts Mold
| US$10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SM028
Material
Hard Alloy and Steel Bonded Carbide
Processing Method
Punching and Shearing Mould
Technics
Forming Die
Process Combination
Progressive Die
Manufacturing Technology
Computer Technology
Driving Motor Type
Permanent Magnet
Mold Cavity Technology
CNC Milling
Milling Speed
Normal Speed
Parts Detection Method
Geometric Detection
Name
Punching Mold for Custom Sheet Metal Stamping
Lead Time
35 Days
Packing
Wooden Case
Customized
Customized
Model No
Hh043
Tolerance
+-0.01mm
Cavity
1 to Multiple
Design Software
2/3 D, Auto CAD, Cae, PRO-E, Solidworks, Ug
Mould Material
Cr12, Cr12MOV, DC 53, Skh-9, 45# etc
Certificate
ISO9001:2008, SGS
Transport Package
Wooden Case
Specification
SGS, ISO
Trademark
huihai auto
Origin
Zhongshan
HS Code
8207209000
Production Capacity
350 Sets/Year
Product Description
Our Advantages:
1. Competitive price
2. Strict quality control system (ISO9001 system manage)
3. Quick mold making and delivery (4-7weeks)
4. Advanced equipment, excellent R&D teams
5. Professional technicians and rich experienced workers
Huihai specializes in manufacturing and supplying of various moulds and dies, such as metal stamping dies, plastic injection moulds, motor stator&rotor molds and stamping parts and injection parts since 2005.
Huihai provides various molds & dies to the clients from USA, Spain, Italy, Russia and so on.
"Good quality with cost-effective" is the base of Huihai business. Huihai people keep creating value for customers as our mission.
ISO 9001: 2008 certificated.
Technical Specifications
| Design Base | Customer product drawings or samples |
| Mold material | Cr12mov, SKD11, D2, M2, DC 53, SKH-9, Copper alloy or the material customer required. |
| Mold base | Standard mold base or customized |
| Standard component | MISUMI, PUNCH, DAYTON, DANLY (or Customer required) |
| Part material fit | SPCC, SPCE, SPCD, DC01, DC04, Stainless steel 304.430.316, Aluminum alloy, and so on |
| Design software | CAE, UG, CAD |
Lead time: 4-7 weeks based on tooling construction
Processing Equipments
| Machine Equipment | QTY | Tapping center | 1 |
| CNC | 5 | Plate shears | 1 |
| WEDM | 2 | Mechanical Press | 13 |
| WEDM-HS | 2 | Hydraulic Press | 2 |
| EDM | 3 | Inspection Equipment | Qty |
| Radial drill | 8 | CMM | 1 |
| Sawing machine | 1 | projector | 1 |
| Grinding machine | 4 | Rockwell-hardness-tester | 1 |
| Milling machine | 2 | Dial Calipers(0-300mm) | 8 |
| Bench drill | 4 | Slide Calipers(0-1000) | 6 |
| lathe | 2 | Pound scale | 1 |
Project process layout
To control the production time, and to decline the probability of clam & return from the end users, making a accurate mold is very important start , we have completed molding produced process to fulfill the needs of client.
Time Control Understanding and controlling the factors of any mold making process is the key to fulfill project control, we use computer analysis and specialized division to take care of controlling mold component unit and predicting work hour. The Parts we'll take into consideration Overseas Clients:
WELCOME TO ENQUIRE AND TAKE MORE...
