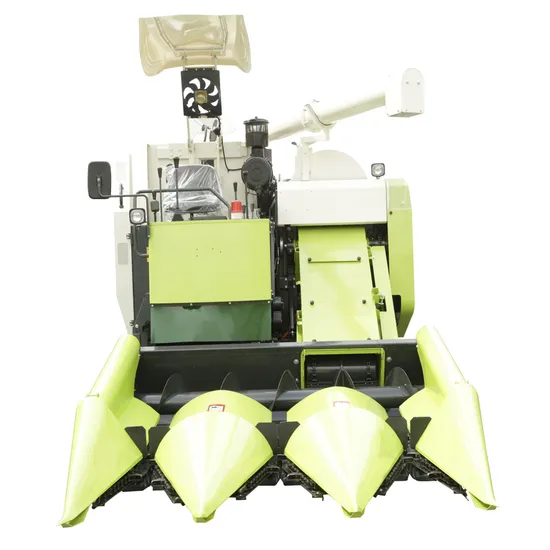

Wuhan Wubota Rice Combine Harvester 4lz-5.5
Basic Info.
Model NO.
Wubota combine harvester
Application
Rice, Corn, Wheat, Rape
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Self Propelling
Certification
ISO9001:2008, CE
Color
White & Green
Condition
New
Application Field
Agriculture
Product Name
Wubota 360 Degree Rotating Unloading Auger Combin
Model
4lz-5.0/5.5
Rated Power
100HP
Rotating Speed
2600 R/Min
Dimension
5150mm*2560mm*2850mm
Weight
3200 Kg
Cutting Width
2200 mm
Feeding Capacity
5.0 Kg/S
Minimum Ground Clearance
340 mm
Operation Speed
1.8 to 5.3 Km/H
Fuel Consumption
18.5 to 40 Kg/Hm2
Productivity
0.25 - 0.65 Hm2/H
Grain Tank
15000L
Oil Tank
150L
Transport Package
Standard
Specification
CE SGS ISO
Trademark
WUBOTA
Origin
China
HS Code
8433510090
Production Capacity
500 Sets/Month
Product Description
Welcome.
Product Parameters
| No. | Item | Unit | Upgraded 4LZ-4.5 Specification | |
| 1 | Model | / | 4LZ-4.5 | |
| 2 | Sturcture Type | / | Vertical Axis Flow Full Feeding Rubber Crawler Self-propelled | |
| 3 | Engine | Type | / | 4-Cylinder,Vertical Engine,Water Cooled, DI-Injection, Turbocharged Engine |
| Rated Power | kw | 78 | ||
| Rotating Speed | r/min | 2400 | ||
| 4 | Dimension(L*W*H): | Working State | mm | 4850*3200*2500 |
| Transportation | mm | 4850*2735*2500 | ||
| 5 | Weight | kg | 3000 | |
| 6 | Cutting Width | mm | 2180 | |
| 7 | Feeding Capacity | kg/s | 4.5 | |
| 8 | Minimum Ground Clearance | mm | 310 | |
| 9 | Operation Speed | km/h | 1.8 to 5.3 | |
| 10 | Productivity | hm2/h | 0.25 to 0.65 | |
| 11 | Fuel Consumption | kg/hm2 | 18.5 to 40 | |
| 12 | Cutter Type | / | Standard Type II | |
| 13 | Cutting Header Auger Type | / | Telescopic Transverse Conveyor Auger | |
| 14 | Reel | Type | / | Eccentric Tooth(off center) |
| Diameter | mm | ∮1000 | ||
| Quantity | pc | 5 | ||
| 15 | Threshing Roller | Quantity | pc | 1 |
| Type | / | Vertical Axis Flow Spike Tooth | ||
| External(D*L) | mm | ∮655*1877 | ||
| 16 | Concave Sieve Type | / | Grid | |
| 17 | Brake Type | / | Wet Friction Plate | |
| 18 | Fan | Type | / | Centrifugal |
| Diameter | mm | ∮346 | ||
| Quantity | pc | 1 | ||
| 19 | Rubber Crawler | Size | / | 450mm*90mm*56 |
| Track Gauge | mm | 1190 | ||
| 20 | Gear Box | / | Hydraulic Stepless Speed Transmission(HST) | |
| 21 | Rethresher Type | / | Auger Spike Tooth | |
| 22 | Grain Unloading Type | / | Hydraulic Rate | |
FAQ:
1. Q: What is the warranty of your agricultural machines?
A: 1 year guarantee for whole machine ( except quick-wear parts ), engine and gear box.
2. Q: Are there any optional parts for your combine harvesters ?
A: Yes, optional parts such as rubber track size, grain tank and type of grain unloading.
3. Q: How long is your delivery time ?
A: Normally it takes 15-20 days to deliver after your deposit receipt or L/C at sight.
4. Q: How many harvesters can be loaded in one container ?
A: (1) 20 Feet Container loads:
For combine harvester:
1 set 4LZ-4.0/4.5
For Power Tiller: 18 sets GN12; 20 sets M80
For Spare Parts: 15-18 tons
(2) 40 High Cube Container Loads:
For Combine Harvester:
3 sets 4LZ-4.0/4.5
For Power Tiller: 40 sets GN12; 50 sets M80
For Spare Parts: 30-35 tons
5. Q: What is the payment term ?
A: Irrevocable L/C at sight or 30% T/T in advance and balance against B/L copy.
6. Q: What is the after-sales service ?
A: Every year we send our engineer and after-service people to local market to assist our sales agent for staff training, marketing, advertising, maintaining and repairing the machine during the harvesting season.
7. Q: Is OEM or ODM service acceptable ?
A: OEM service is no problem, if you have any special requirements about the machines, please kindly inform us, our engineering department will study and offer you the suitable solution.
