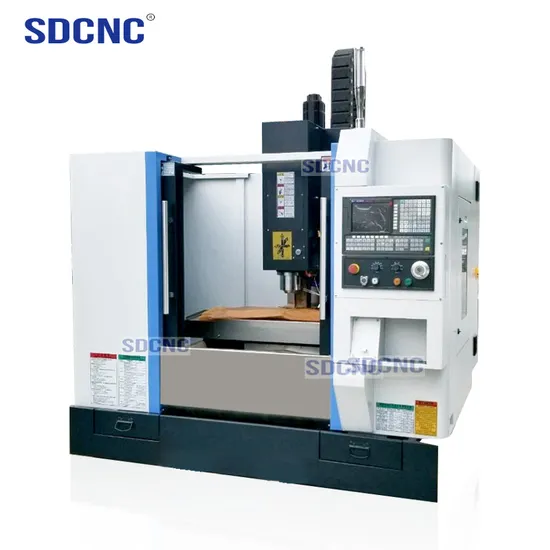

High Precision Xh7126 CNC 3 Axis CNC Vertical Milling Machining Center

Product Description

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers.
The company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces
CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical
lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and
other CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series,
radial drilling machine, vertical drill Bed and other machine tools
Vertical machining center use:This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough
machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
SPECIFICATIONS
Main technical specifications:

Specifications	Units	XH7126
Table size	mm	800x260
X axis travel	mm	450
Y axis travel	mm	320
Z axis travel	mm	450
Max. worktable load	kg	200
T slot(number-width-pitch)		3-14x80
Max. spindle speed	rpm	6000/8000
Spindle taper	mm	BT40
Main motor power	kw	3.7
X/Y/Z rapid traverse speed	m/min	15/15/15
X/Y/Z axis servo motor torque	Nm	6/6/7.7
Cutting feed speed	mm/min	1-6000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	360
Distance between spindle nose and worktable surface	mm	90-470
Positioning accuracy	mm	±0.0015
Repeat positioning accuracy	mm	±0.0075
Tool magazine		12 armless
Max. tool diameter	mm	Φ90
Max.tool weight	kg	8
Machine weight	kg	2400
Overall dimension	mm	2200×1900×2200
