2.2 Ton 2.2 Kg Rubber Crawler Excavator

Product Description

AS22 RUBBER TRACKED CRAWLER SMALL EXCAVATOR
Product Description
Small size and easy to transport, could be loaded onto light truck or small trailer, two sets could be loaded into one 20GP container to save freight cost. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency Famous brand hydraulic system parts ensure the stable quality. equipped with double fuel filter to guarantee fuel purity to protect engine boom deflection design meet narrow work condition, reinforced rubber track to protect road extend hydraulic line for various attachments. comfort seat make operator easy to work.
Detailed Photos

crawler excavator specification(10-35 MODEL)

specifications	AS10	AS15	AS18	AS20	AS22	AS35/40
bucket capacity(m³)	0.023	0.025	0.06	0.07	0.1	0.12
Max digging height	2600	2955	3370	3700	2290	4800
Max digging depth	1715	2017	2050	2400	2450	3208
engine brand	KOOP KD192F-1	kubota	LAIDONG	KUBOTA	LAIDONG	KUBOTA
engine power	7KW	10.4	18	14.2	22.1	18.2
Max speed(KM/H)	2	3.2	2.8	2.8	2.8	4.4
overall dimensions	2840*880*2200	3329*990*2267	3800*1050*2280	3555*990*2290	4080*1300*2280	4915*1720*2525
operating weight (KG)	950	1400	1800	1900	2200	3810

AS15 MACHINE WEIGHT 1400KG AS20 MACHINE WEIGHT 1900KG AS35/10 MACHINE WEIGHT 3810KG

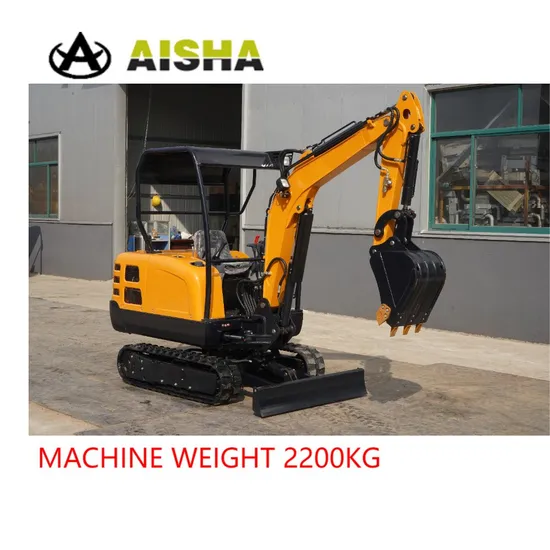

AS10 MACHINE WEIGHT 950KG AS18 MACHINE WEIGHT 1800KG AS22 MACHINE WEIGHT 2200KG
