Automatic Multiple Colour Silk Screen Printing Machine for Conical Cylindrical Steel Drum Barrel

Product Description

Product DescriptionA: Heat transfer printing machine B: Silk printing machine
Product Parameters
1. Heat transfer printing machine
Technical parameter *Power: 4kw *Voltage: 220V/380V *Air pressure: 0.6Mpa *Efficiency: about 6 pcs/min *PLC control:Mitsubishi *This machine can print up to any two parts of the barrel. You can freely adjust the machine to print on the segment you want

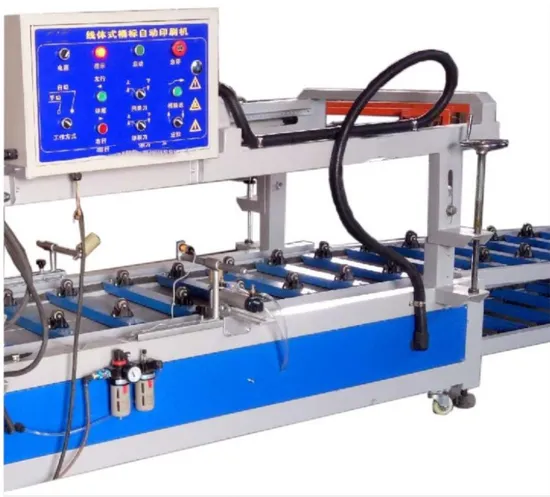

2. Silk printing machine

Printing process flow	Suitable for 216L closed type steel drum; The steel drums enter the silk screen feeding station in sequence (the feeding station includes a conveying roller device)→ Feeding turnover mechanism station turns the steel drum 90°→ Arrives at the conveyor for transportation→ Sets on the conveyor Drum cover positioning mechanism (automatically determine the printing position before printing the steel drum) → The steel drums enter the silk screen printing station (the screen printing machine repositions the height of the steel drum) → Automatic screen printing by the silk screen printing machine → The steel drum are automatically transported to the unloading turnover mechanism (steel drum 90° flip again)
Structure	All steel structure, painted
Positioning system	Adopts photoelectric positioning
Motor	Adopts the corresponding product of Chinese High-quality brand(Shanghai Guoyou)
Conveying Chain	Adopts Chinese high-quality carbon steel plate type rolling chain, and the upper part is equipped with medium hardness;Complete set of polyurethane support wheels (can effectively prevent the support wheels from scratching the surface of the drum)
Industrial control system	Siemens PLC program controller and electronic control accessories choose national high-quality product brands.

Three parts of steel drum could be printed at the same time
III.Printing Process:Drum entry(vertical type)
Through A B(silk printing) with Conveyors auto welding positioner B silk printing
Features:1: Cam-linkage mechanisms driving mode combined with PLC control system for effectively guarantee working stability, reliability,and most efficiency.2: Reliability: Main components from Rexroth, SMC, Mitsubishi international brand. The machines hardware parts are made by CNC directly from CAD. 3: Machine Frame & structures made by high-intensity aluminum alloy and stainless steel. 4: With PLC control system. Fast setup & quick tooling change over for customer's easy operation and adjustment. 5: Adopted with No-product- no print system, auto counter, safety alarm device.
6: Optional: Made based on the customer's special requirements. devices, antistatic dust removing device, extra set flame treatment, UV/IR system, auto scrambler system, offloading conveyor, offloading robot arm to have bottles stand up on the off conveyor belt and any other customizations due to order.
7:Electronic UV Curing System for mostly power rate saving, assuring the UV lamp's longest life span,
adjustable UV identity from 20%-100%Advantages:1: Lower noise and perfect working stability because of the mechanical driven
2: High precised and perfect registering double-color printing
3: Easy setting up for tooling change between oval, round and flat shape bottles and containers
4: equipped with electronic control UV curing system for adjust the UV density ranges from 0-100%5: Much Higher Working CapacityCompany Profile
WUXI LONGTERM is the manufacturer in the field of steel drum production line in China, with a well established reputation for outstanding performance.Recognized worldwide for its proprietary design and manufacturing know how. LONGTERM has been involved in this industry since 1990. We got here on the basis of providing strong support to clients who buy our machinery. our machines have been exported to Russia, Ukraine, USA, UK, Turkey, Australia, Kenya, Egypt, India etc...
When you 'down' - our job is get you back 'up'
Servicing on our machinery has been greatly facilitated by advances in remote control software. This allows us to troubleshoot issues half way around the world and gets you up and running in time frames!
We understand what our customers need to stay competitive:
Custom quality parts
At an affordable rate
In the fastest possible
Meeting these goals requires precision in everything we do.
FAQTo enable me send you offer for correct machines, please tell me following details:
A: Technical drawing
B: Size of the steel drum you want to manufacture
C: What's the capacity per shift/day?
