Good Quality Plastic Pallet Blow Moulding Machine HDPE
| US$42,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ABLD150
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Application
Drum, Table Board, Roadblocks, Medical Bed Board
Max. Product Volume
1500L
Blow Molding Machine Weight
72
Machine Dimension
11.5*7.5*8
PLC Control
Mitsubishi
Contactor
Schneider
Air Valves
Airtac
Hydraulic Valve
Taiwan Hitech
Clamping Force
1800 Kn
Length of Mold
1730-2200mm
Close/Open Stroke
1000-2700mm
Clamping Stroke Measurement
Transducer Italy Gefran
Programmer
Japan Moog
Accumulator Capacity
70L
Drive Motor
132*2 Kw
Transport Package
Film Packaging
Specification
ABLD150
Trademark
DAWSON
Origin
Jiangsu Zhangjiagang
HS Code
8477301000
Production Capacity
as Per Samples
Product Description
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

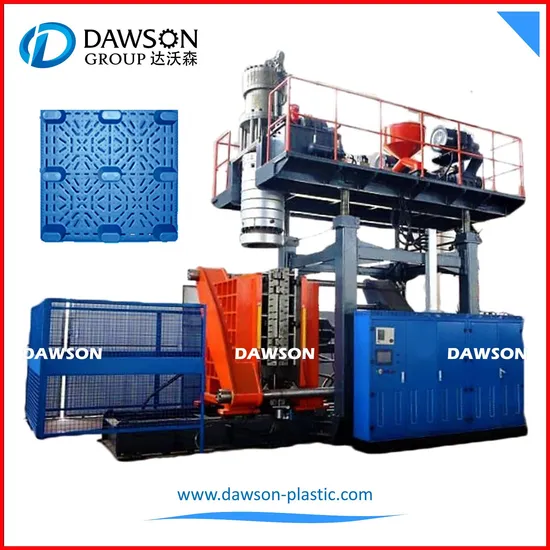

Extrusion Blow Molding Machine ABLD150
| extruder | |||
| 1 | Screw diameter | 120*2 mm | |
| 2 | L/D ratio | 33 | |
| 3 | Drive motor | 132*2 Kw | |
| 4 | Heating zone with cooling fan | 6*2 zone | |
| 5 | Output/Capacity | 620~840 Kg/hr(HDPE particle) | |
| 6 | Heating capacity | 36*2 kw | |
| Accumulator Head | |||
| 1 | Accumulator capacity | 70L | |
| 2 | Design | First in and first out | |
| 3 | Heating zone | 6 zone | |
| 4 | Heating capacity | 64 kw | |
| 5 | Max die&pin diameter | 1000mm | |
| 6 | Accumulator push-out stroke measurement | Transducer Italy Gefran | |
| 7 | Extruder stop | Have | |
| CLAMPING UNIT | |||
| 1 | Platen size | 1800X2120 | |
| 2 | Length of mold | 1730-2200mm | |
| 3 | Clamping force | 1800KN | |
| 4 | Close/Open stroke | 1000-2700mm | |
| 5 | Clamping stroke measurement | Transducer Italy Gefran | |
| 6 | Hydraulic valve | Taiwan Hitech | |
| PARISON CONTROL | |||
| 1 | Programmer | JAPAN MOOG | |
| 2 | Servo valve | MOOG | |
| 3 | Servo cylinder | Intergret of die head | |
| 4 | Hydraulic pack | TAIWAN YOSHE Variable Displacement Piston Pumps | |
