Vertical Cargo Lift, Wall Mounted, Heavy Duty Freight Elevator

Product Description

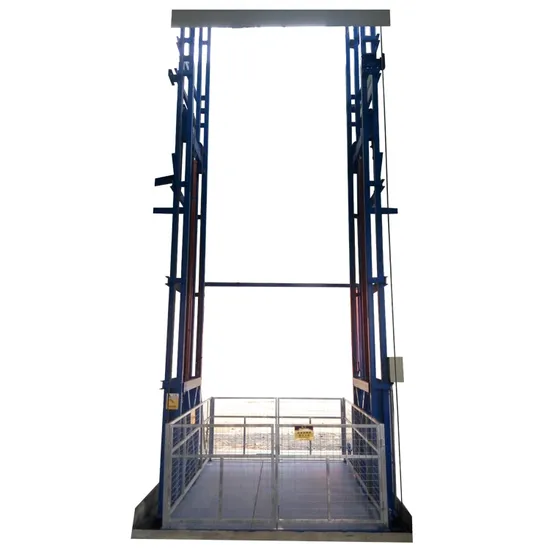

Vertical Cargo Lift, Wall Mounted, Heavy Duty Freight Elevator1. PRODUCT DESCRIPTION The goods elevator is designed as a two or multi-column elevator. It is fixed either to a storage platform or steel structure from our wide accessory segment.
* Up to 8,000 lbs Capacity
* Carriage sizes up to 12' x 10'
* Up to 22′ vertical rise
* Indoor or outdoor models
* Lifetime structural warranty
* Control panel remotely mounted

2.SPECIFICATIONS * The dimension is customized, Below regular dimension FYI only.

Type	Model	Platform size	Lifting height	Load capacity	Motor power
Single guide-rail	RSJD 0.2-3	1000*1000mm	3m	o.2t	1.5kw
	RSJD 0.5-5	1500*1500mm	5m	0.5t	2.2kw
	RSJD 1.0-10	1500*1500mm	10m	1t	3kw
Double guide rail	RSJD 2.0-4.5	3000*2000mm	4.5m	2t	4kw
	RSJD 1.0-5	2000*1500mm	5m	1t	3kw
	RSJD 2.0-5	2800*1600mm	5m	2t	4kw
	RSJD 3.0-5	3000*2000mm	5m	3t	4kw
	RSJD 5.0-5	3000*5000mm	5m	5t	7.5kw
	RSJD 2.0-8	2500*2000mm	8m	2t	4kw
	RSJD 2.0-10	2000*1500mm	10m	2t	4kw
	RSJD 3.0-12	2500*2000mm	12m	3t	5.5kw
	RSJD 2.0-14	2000*1500mm	14m	2t	5.5kw
	RSJD 2.0-16	2000*1600mm	16m	2t	5.5kw
	RSJD 2.0-18	3000*2200mm	18m	2t	7.5kw

3. PRODUCT FEATURES
4. OPTIONAL FEATURES

5. PACKAGING & SHIPPING * Wooden case Package or as required

6. ABOUT US
Racermax Machinery Co., Ltd. is an authorized manufacturer with more than 15 years of history, located in Shandong, China. Annual turnover $5,000,000.
Main products- hydraulic lift, home elevator and aerial working platform, such as Scissor Lift, Aluminum-alloy mast lift, Four-post Car. With CE and ISO certificate.
Lift, Wheelchair Lift, Vertical cargo Lift, Articulated boom lift, Hydraulic dock leveler and other customized products.
Our sales, engineers and technicians are prepared to offer reliable service, products, and solutions for your lifting system.
7. FAQ
Q1: Lead time?
R: 15 working days. 20 for the busy season
Q2: What kind of payments do you support?
R: T/T, L/C, Western Union, Paypal, other terms can be discussed.
Q3: What is the MOQ?
R: Generally 1 set.
Q4: Can you produce according to customer's requirements?
R: Yes, of course, we are a professional manufacturer, With the lifting height, load capacity and platform size, or installation environment, we could make the design accordingly.
Q5: Any after-sale service?
R: Sure, Technical support by instructions, videos, and video call * One-year warranty, free spare parts
