Chinese Cheap Price Mini Crawler Excavator Sy16c with EPA and CE
Basic Info.
Model NO.
SY16C
Type
Crawler Excavator
Usage
GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5 Cbm
Size
Mini Crawler Excavator
Certification
CE
Condition
New
Operating Load
1825kg
Rated Power
2360 mm
Dig Depth
180kN
Bucket Breakout
15.2 kN
Tail Swing Radius
920 mm
Maximum Digging Height
3665mm
Maximum Digging Depth
2360mm
Maximum Digging Reach
4000mm
Swing Speed
10 Rpm
Transport Package
Nude
Specification
3575*1350*2420mm
Trademark
Top Brand
Origin
China
HS Code
84295212
Production Capacity
100 Units/ Month
Product Description
Overview

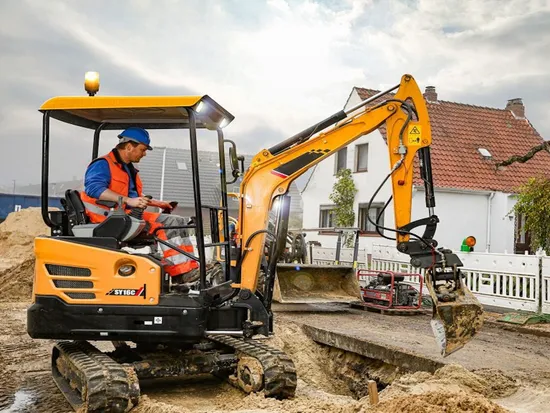

Chinese Cheap Price Mini Crawler Excavator SY16C with EPA and CE
KEY FEATURES
• Convenient service points for easy maintenance.
• Short tail swing is ideal for tight job sites and working in confined spaces
• Lines are run down the boom and arm as standard equipment for easy fit-up and running of hydraulic attachments
•Load sensing hydraulics for increased fuel efficiency and maximized performance
• Hydraulically extendable undercarriage with adjustable front blade width standard
Product Description
* More energy-conservation and environmental protection.
By adopting Yamar engine meeting national stage III emission standard, mechanical fuel injection pump has reliable performance.
With compact size, the maintenance is convenient. Enough low torque reserve can ensure strong power. High reliability can reduce the maintenance cost.
* More efficient return Rear-end swing radius adopts tailless design, which can ensure that the tail part will not collide with obstacles under narrow working conditions.
Deflectable working device can deflect to left and right at 75° and 50° separately, which can achieve compound action with superstructure.
Through swing cooperation with superstructure, digging operation parallel to the wall surface will be achieved and various kinds of working conditions can be coped with easily.
Product Parameters
| Technical Paraments | |
| Dimensions | |
| Overall length | 3575 mm |
| Overall width | 980/1350 mm |
| Overall height | 2420 mm |
| Operation Range | |
| Max. Digging height | 3665 mm |
| Max. Dumping height | 2635 mm |
| Max. vertical Digging depth | 2215 mm |
| Engine | |
| Model | 3TNV74F/3TNV70 |
| Rated Power | 11.2/2400 kW/rpm |
| Specification | |
| Overall Weight | 1750kg |
| Bucket Capacity | 0.04 m3 |
| Bucket Digging force | 15.2 kN |
| Service Capacities | |
| Fuel tank | 23L |
