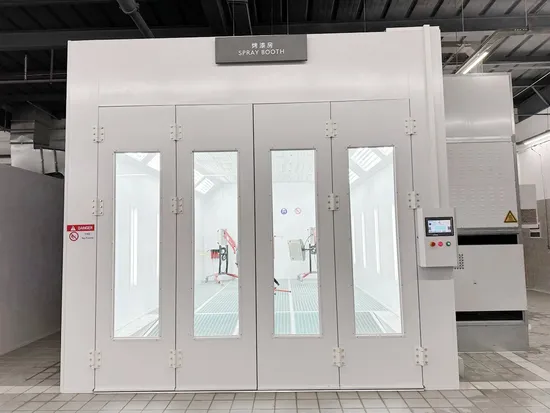

Yft-701 Car Paint Spray Booth Car Paint Oven Auto Paint Oven Car Spray Painting Booth

Product Description

Product Description
Car Paint Spray Booth Car Paint Oven Auto Paint Oven Car Spray Paint Oven Certification: CE
Management Certification: ISO9001: 2000
Warranty Time: 2 Years
Parameter:
Product Parameters

Airflow	Internal Size(mm)	External Size(mm)	Heating Modes	Inlet/Exhaust fan	LED Ceiling Lights	LED Side lights	Empty Loaded Air Speed
Full downdraft	7000X4000X2800	7110x5760x3810	Oil/Gas	2X7.5KW	8 set/4X24W	8 set/2X24W	0.28 m/s
	8000X4000X2800	8110X5760X3810	Oil/Gas	2X7.5KW	8 set/4X24W	10 set/2X24W	0.24m/s

Airflow
1. Full downdraft for spray .
2.Innovative high efficient big impeller fan ,sparkproof design (SIEMENS).
Entrance door
1.2+1structure, 3 observation windows with armoured glass(WXH:3200X2700mm).
2.Safe door,observation windows with armoured glass,emergencylamp,door closer .
Cabin structure
1.Full grids, 650kg/ wheel
2.heat-resistant rock wood panel,base plate thickness:0.426mm
3.600mmheight plenum chamber /350mm height basement
4.European bulge roof design
Heating system
1.200KW high efficient , energy-saving heating exchanger
2.Double protection with over temperature
Control system
1.Double protection with over temperature .
2.PLC intelligent controller.
3.Motor-driven pressure balance valve
4.Self troubleshooting

Component pictures

Inlet motor	Exhaust motor	Inlet fan	Exhaust fan	Air volume	Drying system	Frequency Power Control	Air hose
7.5KW SIEMENS	7.5KW SIEMENS	CRF backward centrifugal fan, direct linkage		28000m³/h	200KW	/	Inlet 6 meters from the ground Exhaust 10 meters off the ground

Blower fan is in line with non-sparking design, and perfectly realized the EN 13355-2004 requirements to the fan. Fan motor and the line and the fluid channel is completely isolated, which is necessary condition for the EN 13355-2004 to the fan, and also to ensure the smallest volume under the flow conditions and beautiful appearance. It is outstanding in the performance of similar products, our design can overcome the resistance of 600Pa in the performance criteria. Adopting ventilation door of cylinder drive and spray - paint conversion damper, more quickly, more accurately, we provide institution of position confirmed for an option, and it can accurately identify the location of the damper whether meet the working conditions.
Sussessful Story
Service commitment
Before you buy
Product quality commitment:
1. Product manufacturing and testing have quality record and testing files.
2. Product performance test. Customers will be invited to attend the complete test procedure. Once product is qualified, then to package and delivery.

Product price commitment:
1. Use famous brand raw material to ensure high reliability and advancement of product.
2. Under the equal race condition, our company sincerely provides the most favorable price and won't be at the cost of reducing product performance and changing product components.

Are buying
Delivery time commitment:
Product delivery time: comply with customer's requirement. If the goods need to be finished in advance, we will arrange production and erection to satisfy the customers.

After purchase
After purchase service commitment:
1. Service purpose: fast, decisive, exact, considerable, thorough.
2. Service target: service quality to win customer satisfaction.
3. Service principle: the warranty is 12 months, the supplier freely replaces damaged parts caused by quality reason within warranty. Beyond the warranty, the supplier provides spare parts at cost. If the equipment damages caused by human factors, the supplier repairs or provides spare parts at cost. Our service people shall provide technical support in 24 hours as long as receive your inform. Company Profile
