Log Wood Tree Branches Crusher

Product Description

1.introduction :

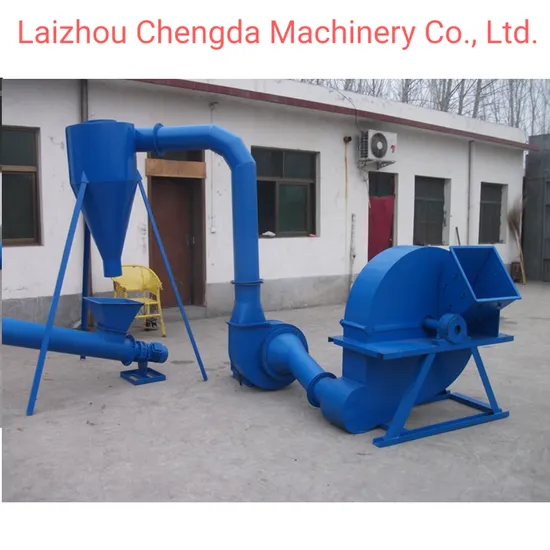

log wood tree branches crusher
the wood crusher can grind the raw material: all kinds of wood, log wood, tree branches, biomass agriculture stalk,
dry wood, wet wood and so on .
it also can grind the corn stalk, wheat stalk, peanut shell, all kinds of straw, no matter dry or wet.

it also can grind the wood chip, coal, chrocal and so on .
Crusher for Branch is an ideal equipment for making the wood pieces, stalk, tree branches, etc into sawdust
directly.It also can be used for crushing bamboo, straw, etc.The final products can be make high density board,
small flake board, and also can be used as the raw material of edible mushrooms or charcoal making, etc.
it require the raw material diameter below 50cm in diameter.
the capacity depends on the model and crusher diameter .
2. technical data

Model	biggest wood in diameter	Power	capacity	Net weight	Packing size(cm)	Final product	Blades quantity
CDRW420	15cm	11kw	500-700kg	450kg	120*70*120	length 4-6cm, thickness 3-4mm	3 pieces
CDRW600	20cm	18.5kw	1-2t	750kg	140*70*120	w length 4-6cm, thickness 3-4mm	3 pieces
CDRW800	22cm	30kw	4-6t	1080kg	160*120*150	length 4-6cm, thickness 3-4mm	4 pieces
CDRW950	25cm	45kw	6-8t	1400kg	210*130*150	length 4-6cm, thickness 3-4mm	4 pieces
CDRW1150	30cm	75kw	8-10t	3100kg	250*140*170	length 4-6cm ,thickness 3-4mm	4 pieces
CDRW1410	45cm	110kw	10-15t	3500kg	270*150*170	length 4-6cm, thickness 3-4mm	4 pieces

3.function:
1).This kind of Crusher for Branch is widely used in swine farm, wood factory, etc.
2),The raw materials can be crushed into straw particles, whose diameter is 3-5mm.The durable hammer mill works
with high efficiency and gains more good reputation from European users.
4.What is the Raw Material of the Crusher for Branch ?
Many kinds of agro wastes such as the rice husk, cotton stalk, etc.
Wood materials:Tree branches, wood pieces, wood chips, etc.
What is the Advantage of the Crusher for Branch ?
1.Reasonable design, compact structure;
2.Safety and high efficiency;
3.Low energy consumption;
4.High production capacity.
