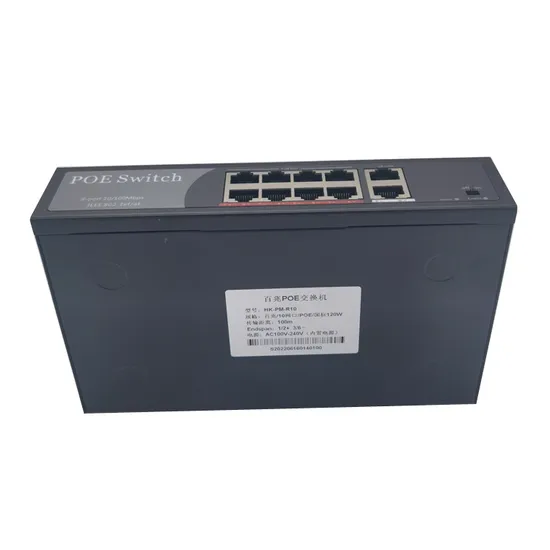

8fe+2fe 8*100m 2*100m OEM/ODM DIN Rail DC48~58V IP40 Gigabit 8 Port Industrial Switch Poe
| US$18.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
HKPM-R10
Transmission Rate
1000Mbps
Ports
≧48
Certification
CE, FCC, RoHS
Warranty
1 Years for Poe Switch
Electromagnetic Emissions
CE Mark, Commercial
Wiring Devices
Poe Switch
Transmission Method
Store-and-Forward
Transport Package
Packing
Specification
150x150x100mm
Trademark
Hongking
Origin
Shenzhen
HS Code
85176219
Production Capacity
50000pieces/Year
Product Description
8FE+2FE 8*100M 2*100M OEM/ODM DIN rail DC48~58V IP40 Gigabit 8 Port Industrial Switch PoE| Provider Mode Ports | |
| Fixed port | 2*1000Base-X SFP, 8*10/100/1000Base-T PoE |
| Power interface | Phoenix terminal, dual redundant power supply |
| LED Indicators | PWR, OPT, NMC, ALM |
| Reset | DIP switch reset |
| Cable Type&Transmission Distance | |
| Twisted-pair | 0-100m(CAT5e,CAT6) |
| Single mode optical fiber | 20/40/60/80/100km |
| Multi mode (optical) fiber | 550m |
| Net Topology&Networking Scale | |
| Star topology | Support |
| Bus topology | Support |
| Tree topology | Support |
| Hybrid topology | Support |
| Electrical Specifications | |
| Input voltage | DC12-58V |
| Power consumption | Non PoE<6W;PoE<246W |
| Voltage Alarm | Support |
| PoE (Optional) | |
| PoE port | 1~8 |
| PoE Protocol | 802.3AF ,802.3AT |
| PoE Pin Assignment | 1,2,3,6 |
| PoE Mode | Standards and non-standards are support optional |
| Remote PD Reset | Support Optional |
| Layer 2 Switching | |
| Switching capacity | 26G |
| Packet forwarding rate | 19.34Mpps |
| MAC address table | 16K |
| Buffer | 2M |
| Forwarding delay | <5us |
| MDI/MDIX | Support |
| Flow control | Support |
| Jumbo Frame | 10K Bytes |
| WatchDog | Support |
| Reset | Support |
| Port Isolation | Support Optional |
| Environment | |
| Operating temperature | -40ºC-+75ºC |
| Storage temperature | -40ºC~ +85ºC |
| Relative humidity | 5%~95% (non-condensing) |
| Thermal methods | Fan-free,natural cooling |
| MTBF | 100,000 hours |
| Mechanical Dimensions | |
| Product size | 143X104X48mm |
| Installation method | Din-rail |
| Weight | 0.5KG around |
| EMC&INGRESS Protection | |
| IP level | IP40 |
| Surge protection of power | IEC 61000-4-5 Level X (6KV/6KV)(8/20us) |
| Surge protection of ethernet port | IEC 61000-4-5 Level X (4KV/4KV)(10/700us) |
| RS | IEC 61000-4-3 Level 3 (10V/m) |
| EFI | IEC 61000-4-4 Level 3 (1V/2V) |
| CS | IEC 61000-4-6 Level 3 (10V/m) |
| PFMF | IEC 61000-4-8 Level 4 (30A/m) |
| DIP | IEC 61000-4-11 Level 3 (10V) |
| ESD | IEC 61000-4-2 Level 4 (8K/15K) |
| Free-Fall | 0.5m |
