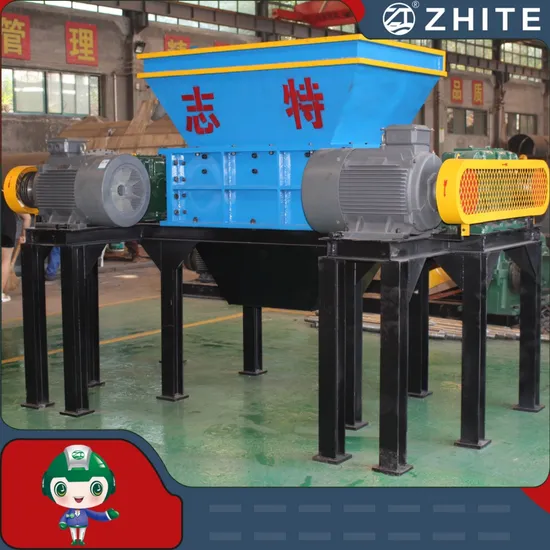

Double Shaft Shredder for Solid Waste Plastic Carton Tyre/Wood/Mattress/Rubber Recycling

Product Description

Double Shaft Shredder for Solid Waste Plastic Carton Tyre/Wood/Mattress/Rubber RecyclingProduct Description
1.The main function of the two shaft scrap metal shredder crusher is to squeeze large pieces of material and large diameter drums of metal materials transported through the front cut of the shredder into sheet materials that meet the requirements.
2.Large metal shredder not only improves the production capacity and crushing efficiency, but also expands the scope of application, metal shredder products make full use of impact, shear, mutual impact, grinding and other theories. It can process wallpaper, paper tube and other raw materials into fragments at one time, with less investment, low energy consumption, high productivity, good economic benefits, convenient use and maintenance.
3.The crusher is mainly composed of a chip cutting device, a crushing device and a fan.
4.The mill is equipped with a small particle size after cutting, and can be sent to the crushing device for further crushing without drying, and the powder fiber finished after crushing is sent to the aggregate site by the fan.Product Parameters

Model	Blade thickness(mm)	Blade diameter(mm)	Crushing chamber size (mm)	Capacity(t/h)	Power(kw)	Overall size(m)	Weight(kg)
600	15-30	260	600*550	0.3-5	18.5*2	3*2*1.1	2850
800	15-40	300	800*600	0.5-6	22*2	3.3*2*2.42	4200
1000	15-40	350	1000*700	1-15	30*2	3.5*2*2.82	6500
1200	30-50	400	1200*800	1.5-20	37*2	3.8*2*2.82	7800
1400	30-60	450	1400*900	2-25	55*2	4.4*2*3	9600
1600	40-60	600	1600*1000	3-35	75*2	4.7*2*3.1	12560

Application
Technical characteristics
1. Heavy moving blade,high crushing power,the blade is made of wear-resistant steel,strong wear resistance, long service life.
2. It is driven by decelerating motor, with strong power, low speed, large torque, low noise, time-saving and labor-saving.
3. The product belongs to the fully automated equipment, set up start, stop, reverse and overload automatic reverse control functions, the use of complete functions, convenient and fast.
4. The blade arrangement and bite mode are designed for metal, and the thickness of props and the number of claws can be changed according to different materials.
5. Easy to adjust, low maintenance cost, uniform discharge, long use time.
Detailed Photos
THE SPINDLE ASSEMBY
1.In a normal shredder,when the main shaft rotates,the material will be subjected to two forces,one is a shearing force on the material when the two knife shafts rotate in opposite directions,and the other is the claw protrusion on the blade.
2.One force is applied to the material ,and two forces respectively realize the operation of tearing strips and tearing pieces of the material
BLADE
1.The shredder blades is one of the most important accessories on the shredders.The quality of the shredder blade directly affects the processing cycle of machine for waste.
2.According to the classification of the shredder,the shredder blade is divided into single-axis shredding Shredder blades and multi-shaft shredder blades.
MAINFRAME BOX
1.The mainframe box is weldedw with thickened steel plate.
2.After post weld stress relief treatment,soild and durable.
Other product
Packaging & Shipping
Customer visit
Company Profile
ZHITE Environmental Protection Technology Co., Ltd. Which located in the "International kite Capital",Weifang city,Shandong Province.With beautiful environment and convenient transportation,it's the domestic environmental protection equipment professional manufacturers.
With an area of more than 20,000 square meters,the company adopts modern enterprise management philosophy,seiko manufacturing,forge ahead. And the company has strong technical force,advanced technology,complete varieties,in strict accordance with ISO9001 standards,organization,design,production,sales and management.
The company is a comprehensive domestic enterprise with integrating scientific research and development,engineering design,production and installation and commissioning services.The main products are medical waste treatment equipment,diseased livestock and poultry harmless treatment equipment,household waste treatment equipment,kitchen waste treatment equipment,tail vegetable treatment equipment,sludge treatment equipment and all kinds of shredding equipment and other solid waste treatment products. Also can design and customize all kinds of efficient and practical equipment and production lines according to customer needs.
Q1. Are you a factory or trading company?We are a professional manufacturing factory since the year 2014. Welcome to visit our factory located in Linqu county,Weifang City,Shandong province, China.
Q2. How can I visit your factory?Visit us on site. You are always warmly welcome to visit our factory on site, just feel free to contact us for an invitation letter.Visit our factory through online video. Or please never hesitate to contact us, our sales staff will contact you and take you to visit our manufacturing workshop and work site through online video. Q3. Where is your factory? How can I get to your factory?Our factory is located in Linqu county,Weifang City,Shandong province, the nearest airport is Qingdao Liuting International Airport (IATA:TAO - ICAO:ZSQD), and then two hours by car or train to our factory. Or you can also fly to Jinan or Shanghai air port, then get to your county by a high speed train.Q4. How long about the delivery time for the medical waste disinfection equipment? About 30days to 60days for standard models, feel free to contact us for details.Q5. Where will the disinfected medical waste go?The medical waste after microwave disinfection treatment is non-infectious, non-hazardous and unrecognizable inert waste, which can be transported to the local domestic garbage landfill or incineration plant as ordinary domestic garbage for treatment, or part of the medical waste after disinfection treatment can be recycled accordingly. It should be properly handled according to your local laws and regulations.
Q6. I want to build a centralized treatment institute in our city, what could you help me?
Please feel free to contact us NOW, our experienced teams will give you sufficient suggestions on your projects, from marketing research, project scales choose, site selection, land layout, and including economic benefit analysis, operational model, etc. With our centralized treatment centers experience in China, surely we'll help during the whole procedure.
CONTACT US NOW
YOU WILL GET FREE TURN-KEY TOTAL SOLUTIONWe'll get back to you within today.
Welcome to visit our factory!
